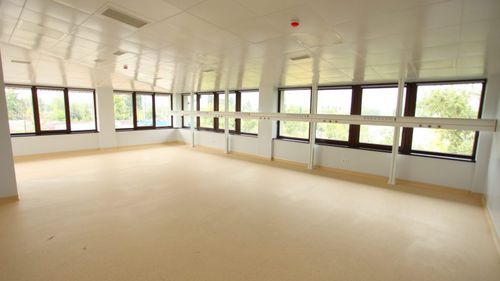

Clean room wall structure "ECO"

for healthcare facilities

Construction: the wall panel consists of an external visible part (metal or aluminum painted, plasticized, with antibacterial PVC, stainless steel, HPL-plastic) and an internal invisible part (gypsum plasterboard sheet moisture resistant, GKLVO-gypsum plasterboard sheet moisture and fire resistant or sheets from HPL, KERROCK—12mm). Mounting: frame for GKLV, special brackets and support profile. Wall panels are connected using locks made in a special way by bending the end parts of the panels. Overall dimensions (mm): 300х2500(2800); 400x2500(2800); 600x2500(2800); 900x2500(2800); 1200x2500(2800). Panel thickness (mm): 14 (metal outer) and 17 (HPL outer). Panels from HPL or KERROCK-12. Application: as an alternative to ceramic tiles, GKLV cladding with subsequent finishing and other possible types of finishes. The panel is able to withstand light loads, where there are no door and window openings, there is no need to fix equipment, and there are no large pressure drops due to the operation of ventilation systems. Cladding panels are resistant to excess or negative pressure in the room.
