Medical vacuum system M-VB
rotarycentralized

medical vacuum system
medical vacuum system
medical vacuum system
Add to favorites
Compare this product


Characteristics

Applications
medical
Technology
rotary
Options
centralized
Flow

Max.: 5,500 l/min
(1,452.95 us gal/min)

Min.: 420 l/min
(110.95 us gal/min)

Length

444 mm
(17.5 in)

Width

344 mm
(13.5 in)

Height

150 mm
(5.9 in)

Description

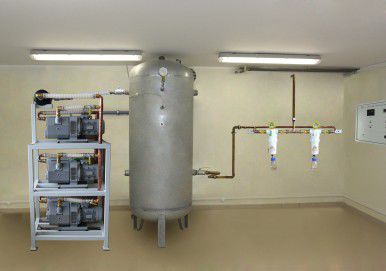

-2 or 3 “Vane” type rotary pumps -Vacuum - minus 0.8 bar -Double antibacterial filter with liquid collector -Galvanized receiver on both sides -Control unit with integrated alarm system -Programmed to operate two or three vacuum pumps -digital pressure control -Alarm system -running time indicator -Possibility of communication with a central control system -Double antibacterial filter with differential pressure gauges -Shut-off valves for replacing filter elements -Connection to pipelines Ø 28 - Ø 42 (depending on model)
