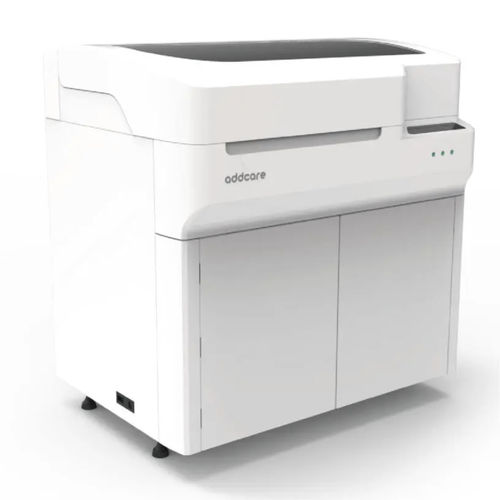

Fully automatic biochemistry analyzer BC-600

floor-standingrandom accessphotometric

Features

• Quality control, calibration and real-time monitoring
• Automatic cleaning to prevent contamination
• Integrated liquid-level detection and probe to prevent injection contamination
• Fully automatic integrated design with high accuracy and reliability
• Space-saving, cost-effective footprint
• Real-time insertion of emergency samples with separate stirring for complete mixing
• User-oriented operation and optimized traceability

Device specification
Overview
Wavelength range: flat image field grating-type optical splitting system, 12 wavelengths (340 nm–800 nm)
Temperature control: constant-temperature water circulation, uniform and stable temperature
Dimensions (W×D×H): 1088 × 798.5 × 1225 mm
Weight: 300 kg

Sample assembly

• Sample types: serum, plasma, urine, cerebrospinal fluid (CSF) and others
• Throughput: 600 tests/hour
• Sample positions: 115 (50 routine samples, 34 calibrators, 20 emergency samples, 8 quality control products, 3 cleaning fluids)

Reagent assembly

• Reagent positions: dual reagent compartments, total 90 positions (45×2) with refrigeration function
• Reagent storage temperature: 4–12 °C
• Reagent volume range: 20 µL–350 µL
• Reagent level sensor: integrated with sample probe

Characteristics / Technical specifications

• Wavelengths: 12 channels, 340 nm–800 nm (flat image field grating-type)
• Temperature system: constant-temperature water circulation for uniform stability
• Dimensions: 1088 × 798.5 × 1225 mm; Weight: 300 kg
• System/Interface: LIS connectivity; interfaces: CAN card, USB; computer and printer optional
