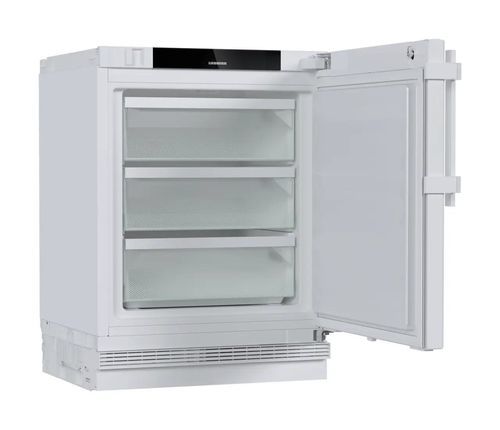

Laboratory freezer SFUsg 1001 Performance

benchtopbuilt-in1-door

Overview
Fully integrated under‑bench laboratory freezer for general applications. Front ventilation allows flexible integration into furniture. Designed for demanding laboratory use with accurate temperature control, monitoring options and extended service life.

Highlights

• Fully integrated under-bench laboratory freezer (front ventilation and extraction)
• Temperature stability: ±5 °C
• SmartFrost cooling technology to reduce frost build-up
• Adjustable temperature range: -9 °C to -30 °C
• SmartMonitoring capable (SmartModule, retrofittable WLAN/LAN interface)
• Accurate 1-point calibration (0.1 K increments)
• Alarm functions including alarm relay and alarm test; optical and acoustical malfunction warnings

Product attributes (from page)

• Product dimensions (H/W/D): 81.9 / 59.7 / 58.4 cm
• Total gross volume: 91 l
• Total net volume: 68 l
• Energy consumption per year: 117 kWh/a
• Energy consumption per 24 h: 0.320 kWh / 24h
• Noise level: 39 dB
• Refrigerant: R 600a
• Rated power consumption: 60.0 W
• Voltage: 220-240 V ~, Frequency: 50/60 Hz
• Maximum fluctuation: 1.5 °C; Gradient: 2.9 °C

Control & Monitoring

• Control unit: Touch
• Temperature display: external digital
• Power failure alarm: on return of mains power
• Malfunction warning: optical and acoustical
• Positive temperature deviation alarm threshold: 1.2 K
• Negative temperature deviation alarm threshold: -1.3 K
• Potential-free contact: yes
• SmartMonitoring-enabled: Yes (SmartModule, retrofittable)
• Connectivity solution: retrofittable WLAN/LAN (optional)

Freezer compartment

• Cooling technology: SmartFrost
• Cooling system: static
• Defrosting method: manual
• Drawers in freezer compartment: 3
• Number of storage shelves: 0 (no adjustable shelves)
• Interior light: none

Design & Materials

• Side wall material: steel
• Door material: steel
• Colour: white
• Handle: Antimicrobial handle with opening mechanism
• Interior containers: white plastic (polystyrene inner liner, seamless)
• Replaceable door seal

Installation & Safety

• Can be integrated into recesses thanks to front ventilation/extraction (under-workbench installation)
• Self-closing door (below 90°)
• Door hinges: right (interchangeable by customer)
• Mechanical lock with two keys (professional appliances)
• Max. installation altitude: 2,000 m above sea level
• Protection (fuse): 10-16 A
• Connector cable length: 3,000 mm

Technical specifications

• Brand: Liebherr
• Model: SFUsg 1001 Performance
• EAN / GTIN: 9005382255056
• Distribution item no.: 994788351
• Product dimensions (H/W/D): 81.9 / 59.7 / 58.4 cm
• Total gross volume: 91 l
• Total net volume: 68 l
• Adjustable temperature range: -9 °C to -30 °C
• Energy consumption (year): 117 kWh/a
• Energy consumption (24h): 0.320 kWh / 24h
• Noise level: 39 dB
• Refrigerant: R 600a
• Heat emission: 135 kJ / h
• Rated power consumption: 60.0 W
• Voltage / Frequency: 220-240 V ~ / 50/60 Hz
• Temperature stability / maximum fluctuation: ±5 °C stability overall; maximum fluctuation 1.5 °C; gradient 2.9 °C
• Certifications: IEC 60068-3 / IEC 61010-1 / IEC 61010-2-011 / IEC 61326-1
• Clean room class according to ISO EN 14644-1: ISO class 6
• Load-bearing capacity of shelf areas, freezer compartment: 15 kg
