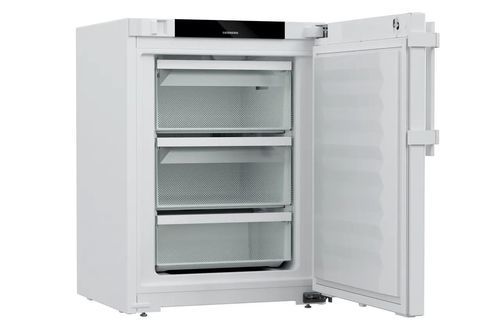

Laboratory freezer SFTfg 1501 Performance

undercounterexplosion-proofair-cooled

Overview
ATEX-compliant undercounter freezer for laboratories designed for the safe storage of closed containers with combustible or potentially explosive substances. Provides reliable temperature stability, reduced interior frost build-up (SmartFrost) and multiple safety and monitoring interfaces for professional lab environments.

Key highlights

• ATEX classification: interior certified <Ex> II 3 G Ex ec IIC T6 (Zone 22) for storage of combustible substances in closed containers.
• SmartFrost technology: significantly reduces frost formation inside the cabinet; evaporator embedded in foam for even cooling and improved energy efficiency.
• Temperature stability ±5 °C (operational reference): minimal fluctuations to protect thermosensitive contents.
• Retrofit WLAN/LAN interface and SmartModule compatibility: enables SmartMonitoring for remote monitoring and documentation.
• Designed for long service life: high-quality materials, solid workmanship and extended spare-part availability.
• Easy-to-clean interior: seamless polystyrene inner container with large radii for quick cleaning and hygiene.
• Alarm relay and alarm functions: optical and acoustic alarm outputs and potential-free contact for building management systems.
• Mechanical lock: secure storage with mechanical lock and two keys.

Additional features

• Antibacterial lever handle: lever handle with antimicrobial properties to reduce bacterial load.
• Intuitive control: door-integrated control panel with symbols and voice guidance; operable via buttons or Touch & Swipe, including with gloves.
• Interchangeable door hinge: delivered with right-hand hinge; convertible to left-hand by the user without additional parts.
• Replaceable door seal: plug-in door seals that can be replaced without tools.
• Evaporator cover: prevents contact of stored items with cold surfaces and improves temperature stability.
• Min./max. temperature recording and SmartMonitoring-enabled: temperature history and compatibility with connectivity solutions.
• Power-failure info: reports maximum temperature reached during power interruptions upon power restoration.

Technical specifications

• Model: SFTfg 1501 Performance
• Brand: Liebherr
• Product group: Laboratory freezer with ignition-free interior
• Classification: Performance
• GTIN / EAN: 9005382282038
• Distribution item no.: 091654851
• Product dimensions (H/W/D): 81.9 / 59.7 / 60.5 cm
• Exterior dimensions with packaging (H/W/D): 890.0 / 615.0 / 710.0 mm
• Weight (without packaging): 39.10 kg
• Weight (with packaging): 40.90 kg
• Total gross volume: 101 l
• Total net volume: 71 l
• Adjustable temperature range: -9 °C to -30 °C
• Temperature stability (reference): ±5 °C
• Energy consumption (24 h): 0.525 kWh / 24h
• Energy consumption per year: 192 kWh/a
• Rated power consumption: 110.0 W
• Voltage / Frequency: 220-240 V ~ / 50 Hz
• Noise level: 40 dB
• Refrigerant: R 600a
• Heat emission: 215 kJ / h (air cooling)
• Cooling technology: SmartFrost (static cooling)
• Defrosting method: manual
• Freezer compartment: 3 drawers; 2 storage shelves (0 adjustable)
• Load-bearing capacity of shelf areas (freezer): 40 kg
• Net shelf width: 38 cm; Net shelf depth: 34.7 cm
• Certifications: IEC 60068-3 / IEC 60079-7 / IEC 61010-1 / IEC 61010-2-011 / IEC 61326-1
• ATEX classification: <Ex> II 3 G Ex ec IIC T6 (Zone 22)
• Clean room class according to ISO EN 14644-1: ISO class 7
• SmartMonitoring-enabled: Yes (SmartModule, retrofit WLAN/LAN optional)
• Potential-free contact (alarm relay): Yes
• Maximum installation height: 2,000 m above sea level
