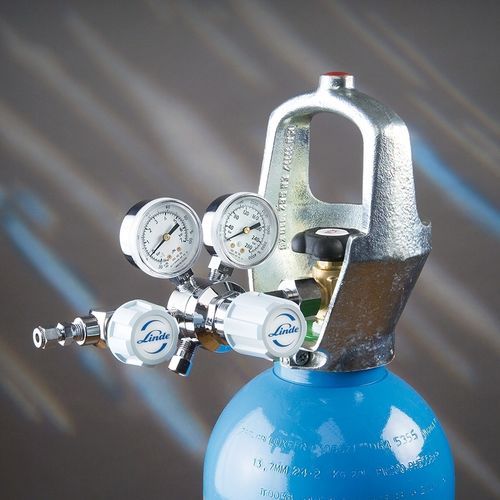

Gas pressure regulator BASELINE® C 106/1

high-pressure

Our BASELINE portfolio of regulators was created for regular laboratory gases at purities up to grade 5.0 (99.999%) and gas mixtures with component content at % level. These regulators are ideal when our REDLINE® premium specialty equipment range is not necessarily required. Like our REDLINE family, all BASELINE products use materials specified to higher standards and tighter tolerances than those required for normal industrial and welding operations. They are designed to reduce system purging times and maintain the required gas quality at the point of use. This series is especially suited to specialty gases where demands on purity, tightness and safety are high, but somewhere below the level provided by our premium REDLINE range. The family includes both one- and two-stage regulators. The C 106/1 is a single-stage regulator intended for primary pressure control of non-corrosive, high-purity or liquefied gases in applications where minor fluctuations in outlet pressure due to diminishing inlet supply can be tolerated. The stainless steel version is suited to high-purity or corrosive gases. C 106/1 can be plain or equipped with a diaphragm valve (type A) or a needle valve (type B). The maximum primary pressure is 210 bar (3,046 psi) and the outlet pressure ranges from 0 bar (0 psi) to 35 bar (508 psi). C 106/1 cylinder regulators are generally recognized as safe (GRAS) and are suitable for use with FDA GRAS-approved food additive gases and with process gases in pharmaceutical production. These regulators are also compatible with food gas packaging according to the latest applicable European Commission Regulations.
