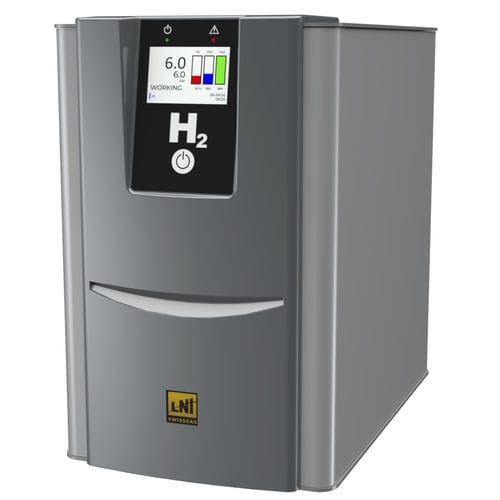

Hydrogen generator HG PRO LN
PSAmembranePEM

hydrogen generator
hydrogen generator
Add to favorites
Compare this product


Characteristics

Gas type
hydrogen
Technology
PSA, membrane, PEM
Output pressure

12 bar, 16 bar
(0 psi, 174.05 psi)

Gas purity

100 %

Rated capacity

640 W, 750 W
(0.9 hp, 1 hp)

Description

The HydroGen series HG PRO LN is able to generate up to 1500 cc/min of Hydrogen with purity better than 99.99999% a pressure up to 16 bar (232 psi) and a N2 content < 1 ppm. The HG PRO includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are used. The innovative gas drying system (two-column drying PSA system with automatic regeneration) ensures the maximum grade of hydrogen purity, it is completely maintenance-free and allows continuous operation, 24 hours a day. The on-board CPU automatically checks for internal leaks and constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel using an external control box. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit. New long life multilayer PEM cell High flow rate up to 1500 cc/min High pressure up to 16 bar (232 psi) N2 content < 1 ppm RS 232/485 and USB standard LAN optional Auto refill standard High purity: 99.99999% Dryer with no maintenance Safety routine and self monitoring Reduced foot print High pressure GLS electronically controlled (patented) Carrier gas for GC and GS-MS GC-FID / GC-NPD / GC-FPD / THA ICP-MS collision gas Refilling metal hydride tanks for use with fuel cells CVD application for diamond production
