Hydrogen generator HG BASIC
for gas chromatographycompactPEM

hydrogen generator
hydrogen generator
hydrogen generator
hydrogen generator
Add to favorites
Compare this product


Characteristics

Gas type
hydrogen
Applications
for gas chromatography
Configuration
compact
Technology
PEM
Other characteristics
high-purity, with touch screen
Output

700 m³/h (24,720 ft³/h)

Output pressure

10 bar (145.04 psi)

Gas purity

Max.: 99.9999 %

Min.: 99.9999 %

Rated capacity

320 W, 640 W (0.4 hp)

Description

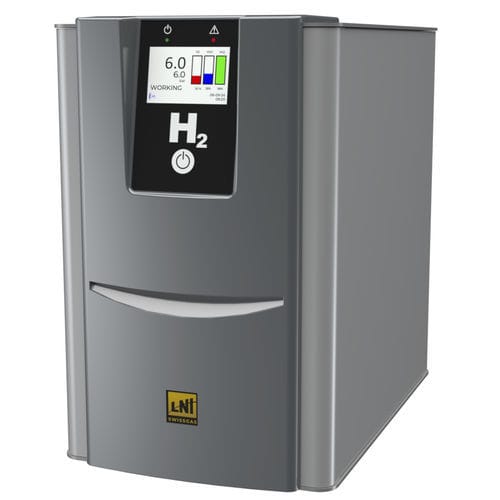

The HydroGen series HG BASIC is able to generate up to 700 cc/min of Hydrogen with purity better than 99.9999% and pressure up to 10 bar (145 psi). The HG BASIC includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are used. The innovative drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to its innovative humidity safe guard, HG BASIC is completely maintenance-free and allows continuous operation, 24 hours a day. The on-board CPU automatically check for internal leaks and constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit. Stackable with various other models: AG-OFCAS35; NG-EOLO; AG-ZA-Fid. -New long life multilayer PEM cell -RS 232/485 and USB standard -LAN optional -Auto refill standard -Static dryer no maintenance -Safety routine and self monitoring -Reduced foot print -Smart humidity safe guard (patented) -High pressure GLS electronically controlled (patented) -GC-FID / GC-NPD / GC-FPD / THA -ICP-MS collision gas -Refilling metal hydride tanks for use with fuel cells Electrolytic cell - PEM technology Drying system - Static dryer H2 flow-rate (Max) - 120 - 180 - 260 - 350 - 500 - 700 Dimensions - 27 x 44 x 41(H) cm Net weight (no water in tank) - 19 kg - 20 kg Communication RS-232 / USB / RS-485 - Standard Digital I/O - Standard
