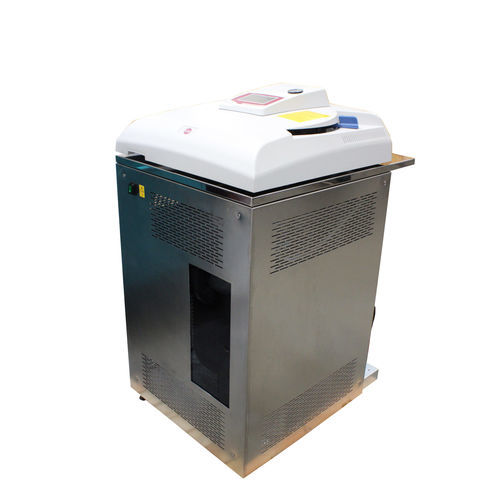

Laboratory sterilizer Touchclave-V+ Eco

steamtop-loadingwith vacuum cycle

Presentation
The Touchclave-V+ Eco autoclave is a top-loading, cylindrical-chamber steriliser engineered for laboratories requiring compact footprint, low power consumption and simple installation. It supports standard lab sterilisation cycles and offers an optional Category 3 filter for enhanced containment where required.

Product summary
80 L top-loading cylindrical autoclave with integrated condensate bottle and automatic water fill. Designed for sites without drain or direct water supply and for facilities seeking reduced energy use. Compatible with a standard 13A electrical supply for plug-and-play installation. Energy consumption can be reduced by up to 40–50% compared with conventional models.

Key features

• Cost-effective sterilisation solution for laboratory environments
• 13A Plug & Play — installs on a standard 13A electrical supply
• Compact top-loading design for constrained spaces
• Low power output for energy-efficient operation
• Category 3 capability — option to fit Cat 3 filter to limit pathogen release
• Pre/post vacuum system for improved air removal and deeper steam penetration; can accelerate cooling
• Auto water fill ensures chamber is topped before cycle and discharges water after cycle
• Integrated condensate bottle enclosed in the frame for tidy condensate management and easy emptying
• USB port for remote data archiving (data extraction to PC) as standard
• Thermal paper printer for printed cycle records and validation

Capacities & operating range
Capacity: 80 litres
Chamber type: Cylindrical
Loading: Top-loading
Operating temperature range: 105–134 °C

Applications & benefits

• Ideal for laboratories with limited space or without drain/direct water supply
• Sustainability-focused design reduces energy consumption and operating costs
• Cat 3 filter option for containment of high-risk pathogens where required
• Simple installation and operation with plug-and-play electrical connection

Technical specifications

• Commercial model: Touchclave-V+ Eco
• Capacity: 80 L
• Chamber type: Cylindrical
• Loading: Top-loading
• Temperature range: 105–134 °C
• Electrical installation: 13A Plug & Play (standard 13A supply)
• Energy savings: up to 40–50% vs standard autoclave models (manufacturer data)
• Available systems: Pre/Post vacuum system
• Safety/filtration options: option to fit Cat 3 filter
• Water supply: Auto Water Fill with automatic discharge after cycle
• Condensate management: integrated condensate bottle, easily accessible
• Data archiving: USB port for data extraction
• Printing: Thermal paper printer for cycle records
• Design: compact footprint, suited to modern laboratory environments
