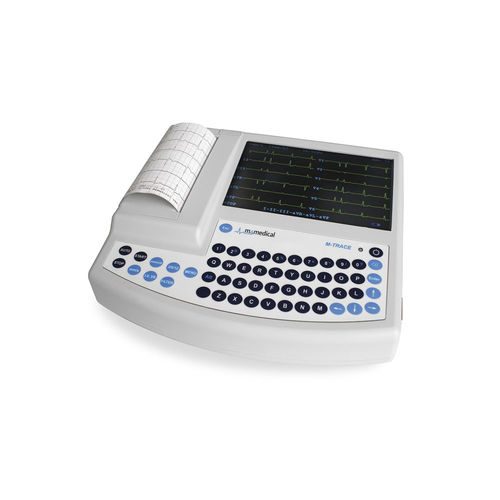

Resting electrocardiograph M-TRACE

12-channel3-channel6-channel

■ Signal analysis compliant with EN 60601-2-51 ■ Test interpretation that depends on patient’s age given in days, months and years ■ Alphanumeric keyboard ■ Functional keyboard for direct steering of basic functions of the device ■ Detection of pacemaker impulses ■ Internal memory >500 tests ■ Width of record: 110 - 112mm (thermic paper) ■ Recording in manual mode ■ Recording in automatic mode (one-time record) ■ Backward record of ECG test (up to 10 sec) ■ Long (up to 10 minutes in the internal memory) record for arrhythmia evaluation ■ Mains power, maintenance-free power supply with the in-built charger battery back-up upto 4 hours ■ Record speed: 5/10/25/50 mm/s ■ Sensitivity: 2,5/5/10/20 mm/mV ■ Filtration of network disturbances: 50/60 Hz ■ Filtration of muscle disturbances: 25/35 Hz ■ Adjustment filter (automatic) ■ Filtration of isoelectric line: (0,05 – 1,5 Hz) ■ Communication interface: 2xUSB ■ Sampling frequency: 1000 Hz/channel ■ A/C, 24-bit converter ■ Test preview from the ECG machine’s memory without a need of a printout ■ Record and reading of tests from pendrive in the standard that is compliant with the EN 1064 ■ Automatic test of the device ■ Weight up to 1,3 kg (without equipment); 1,8 kg (with equipment) ■ Standard equipment: 1 set of suction electrodes for adults (6pcs), 1 set of clamp electrodes for adults (4pcs), 1 set of cables, 0,5l of gel, 1 roll of paper (112mm x 25m) 0,5l of gel, 1 roll of paper (112mm x 25m) ■ Trolley with a boom suited for patient’s cable
