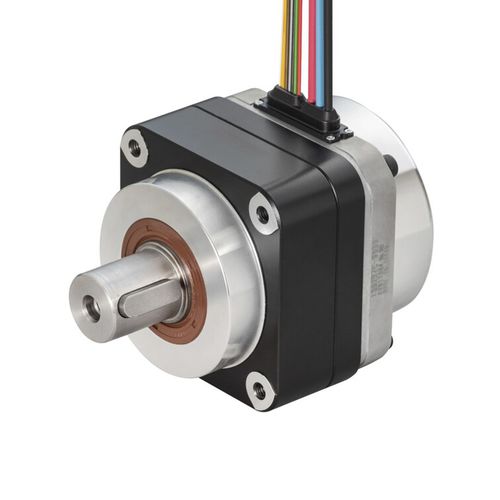

Wheelchair motor MS-94BZA

medical industrybrushlessDC

● Main Applications AGVs and AMRs, Delivery Robots, Electric Wheelchairs ● Product Features - Compact & Powerful Our brushless motors generate high output for their size. Engineered to be slim, their structure provides flexible product design. - IPX4 Rated-Water Resistant Design Our motors and controllers have an IPX4 rating. The water-resistant design is ideal for products operated in demanding conditions and outdoors (e.g. delivery robots, agricultural robots). - Perfect Reduction Gear for Mobile Robot Applications A planetary reduction mechanism suitable for high torque is used, making it possible to directly support the radial load applied to the output shaft of this unit when AGVs or AMRs transport cargo. - Geared Unit Type With planetary gear (reduction ratio 10.33:1). Size: 85.0 mm × 85.0 mm × Length : 84.5 mm Weight: 2.2 kg Detailed specifications and drawings can be found on our solution site. Please access the link at the top right of this article. You can also download instruction manuals and 3D drawing data from this link: https://solution.mabuchi-motor.com/en/products/ms_series/ms94bza
