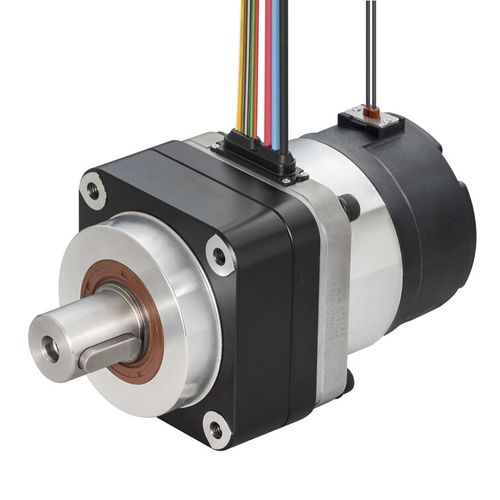

Wheelchair motor MS-94BZB

medical industrybrushlessDC

AGVs and AMRs, Delivery Robots, Electric Wheelchairs • Product Features - Compact & Powerful Our brushless motors generate high output for their size.Engineered to be slim, their structure provides flexible product design. - IPX4 Rated-Water Resistant Design Our motors and controllers have an IPX4 rating. The water-resistant design is ideal for products operated in demanding conditions and outdoors (e.g. delivery robots, agricultural robots). - Perfect Reduction Gear for Mobile Robot Applications A planetary reduction mechanism suitable for high torque is used, making it possible to directly support the radial load applied to the output shaft of this unit when AGVs or AMRs transport cargo. - Geared Unit Type With planetary gear (reduction ratio 10.33:1) and static brake. Size: - 85.0 mm * 85.0 mm * Length : 126.5 mm Weight: - 2.8 kg
