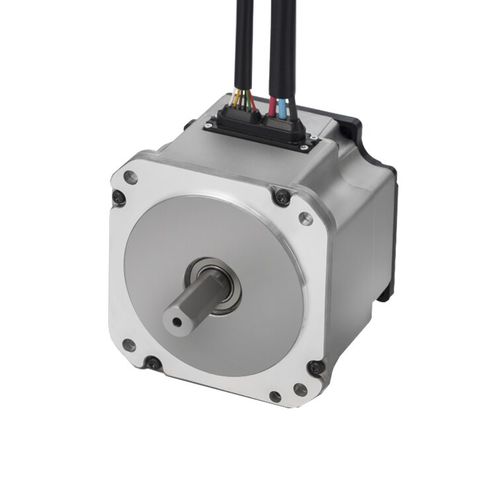

Wheelchair motor IR-94BZAmedical industrybrushlessDC
Add to favorites
Compare this product
Characteristics
- Applications
- medical industry, for wheelchairs
- Operational mode
- brushless
- Current type
- DC
- Power
355 W
(0.483 hp)- Rotational speed
3,400 rpm
(21,362.83 rad.min-1)
Description
AGVs and AMRs. Delivery Robots.
• Product Features
- Compact & Powerful
Our brushless motors generate high output for their size. Engineered to be slim, their structure provides flexible product design.
- Energy-Saving
Our motors have an energy conversion efficiency of up to 90%. helping to improve the power efficiency of your products.
- Precise Rotational Control
A resolver sensor with 15-bit angular resolution enables precise control with little rotational irregularity in the range 0.4.000 r/min.
- Robust Sensor Construction with Stable Sensing Capability
In addition to the water-resistant guarantee IPX4. our unigue manufacturing technology has made the sensor resistant to heat. oil. dust and vibration, allowing it to be used in harsh environments.
Size: - 85.0 mm * 85.0 mm * Length : 65.5 mm
Weight: - 1.1 kg
