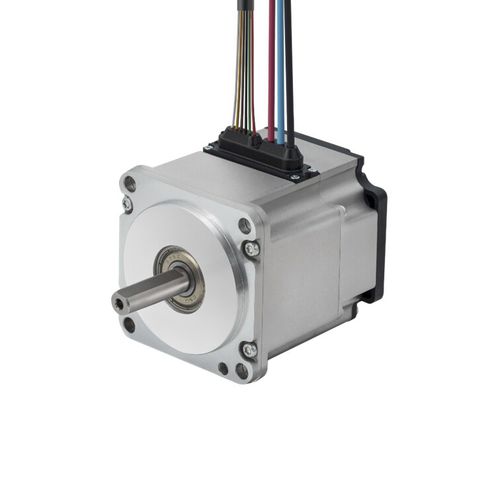

Wheelchair motor IR-74BZA (Coming soon)

medical industrybrushlessDC

● Main Applications AGVs and AMRs, Delivery Robots, Electric Wheelchairs ● Product Features - Compact & Powerful Our brushless motors generate high output for their size. Engineered to be slim, their structure provides flexible product design. - Energy-Saving Our motors have an energy conversion efficiency of up to 90%, helping to improve the power efficiency of your products. - Precise Rotational Control A resolver sensor with 15-bit angular resolution enables precise control with little rotational irregularity in the range 0₋4,000 r/min. - Robust Sensor Construction with Stable Sensing Capability In addition to the water-resistant guarantee IPX4, our unique manufacturing technology has made the sensor resistant to heat, oil, dust and vibration, allowing it to be used in harsh environments. Size: 60.0 mm × 60.0 mm × Length : 66.5 mm Weight: 0.62 kg
