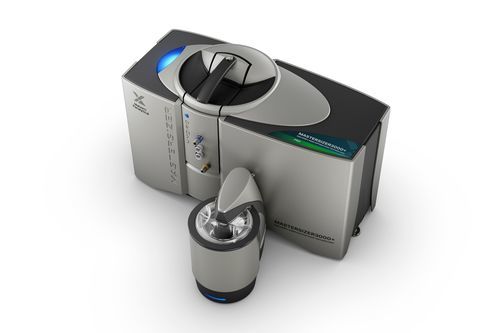

Laser light scattering particle size analyzer Mastersizer 3000+ Ultra

opticallaserlaser diffraction

Overview
The Mastersizer 3000+ Ultra is a compact laser diffraction particle size analyzer delivering measurements from 0.01–3500 µm. It combines a single optical measurement path with dual-wavelength detection and software tools to support method development, routine testing and regulated workflows.

Key features

• Laser diffraction particle sizing with Mie and Fraunhofer analysis
• Measurement range: 0.01–3500 µm (single optical path)
• Size Sure measurement mode (patent-pending, AI-assisted)
• Mastersizer Xplorer software with Data Quality Guidance and SOP Architect
• Interchangeable automated wet and dry dispersion accessories
• Smart Manager connectivity and OmniTrust compatibility for regulated environments

How it works
A laser beam passes through a dispersed particulate sample and a detector array measures scattered light intensity across a wide angular range. Scattering patterns are analyzed (Mie/Fraunhofer) to compute particle size distributions. The system integrates optical bench, dispersion modules and software to ensure reproducible results.

Optical bench and measurement capabilities
Single optical measurement path with reverse-Fourier lens arrangement and log-spaced detector array. Dual-wavelength detection (red He–Ne and blue LED) supports accurate analysis across the full size range. Automatic alignment and high acquisition rates enable rapid, repeatable measurements.

Sample dispersion units
Multiple wet dispersion accessories (small to large volumes) and a dedicated dry dispersion system provide correct concentration control and stable dispersion state for powders, suspensions and emulsions. Accessories are easily interchanged to suit different workflows.

Mastersizer software
Mastersizer Xplorer controls instrument operation, analyses scattering data to generate size distributions and guides users through method selection, routine measurement and reporting. Built-in advice reduces training needs and supports method performance tracking.

Key applications

• Powder flowability and packing density analysis
• Suspension and emulsion stability assessment
• Viscosity and flow characterization of slurries
• Specific surface area and dissolution rate control (pharmaceuticals, agrochemicals, detergents)
• OINDP / inhalation particle sizing
• Reaction rate control in solids (cement, catalysts, battery materials)
• Optical and coating property control (paints, pigments)
• Food texture and grind control (chocolate, coffee)

Industry applications
Used across pharmaceuticals (R&D, QC, manufacturing), advanced materials (batteries, catalysts, semiconductors), coatings and films, 3D printing powders, powder metallurgy and related industrial applications.

Accessories (examples)

• Hydro Insight
• Hydro SV (small volume)
• Hydro MV (medium automated)
• Hydro LV (large volume)
• Hydro EV (flexible volume)
• Hydro SM (entry small volume)
• Aero S (dry powder dispersion)
• Aero Funnel Sample Feeder
• Mastersizer 3000 Chocosizer
• Size Sure mode
• Data Quality Guidance (software)
• SOP Architect (software)

Manuals and software highlights
Documentation includes user guides, method development resources and Mastersizer Xplorer software updates to support installation, operation and compliance.

Technical specifications

• Particle type: Suspensions, emulsions, dry powders
• Technology: Laser light scattering
• Analysis methods: Mie and Fraunhofer
• Particle size range: 0.01–3500 µm
• Data acquisition rate: 10 kHz
• Typical measurement time: <10 sec
• Number of size classes: 100 (user adjustable)
• Accuracy: <0.6% (monomodal latex standards; sample dependent)
• Precision / Repeatability: <0.5% variation (sample dependent)
• Reproducibility: <1% variation (sample dependent)
• Optics: Red source max. 4 mW He–Ne 632.8 nm; Blue source max. 10 mW LED 470 nm; Reverse Fourier lens; Effective focal length 300 mm
• Detector: Log-spaced array; Angular range 0.015–144°; Automatic alignment
• Dimensions (W × D × H): 690 × 300 × 450 mm
• Weight: 30 kg
• Power: 100–240 V, 50/60 Hz; 50 W (no dispersion units) up to 200 W (with two units)
• Operating temperature: +5 °C to +40 °C
• Humidity: 80% max to 31 °C, decreasing to 50% at 40 °C; non-condensing
• Storage temperature: -20 °C to +50 °C
• Laser safety: Class 1 (IEC60825-1 and applicable CDRH standards)
• Regulatory: RoHS, WEEE, CE, FCC; meets European Low Voltage directive
• Patents: Optical bench protected (WO2013038161, WO2013038160, WO2013038159)
• Notes: Performance depends on sample and preparation; accuracy defined on latex standards
