Overview
Leak Tester Control (LTC) is an instrument for periodic verification and calibration of leak and flow testing equipment. The integrated leak simulator allows exact verification of the test system’s detection and rejection behaviour.

Performance

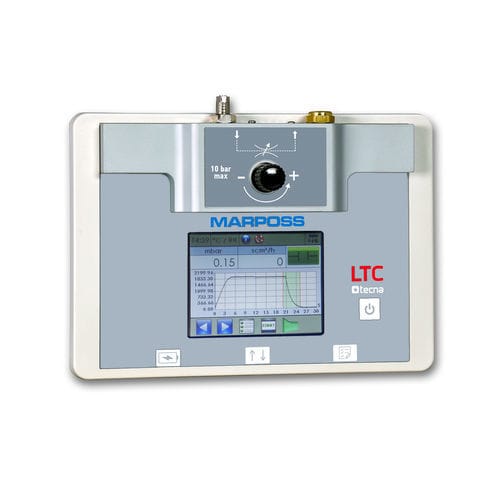

The LTC is connected in derivation between the testing equipment and the part under test using the supplied Staubli® quick-coupling T fitting. The operator adjusts leak flow via a manual needle valve or enables/disables the simulated leak from the 3.5" touchscreen. Internal pressure and flow sensors measure line pressure and actual leak flow; both values are displayed simultaneously for direct comparison.

Connectivity
USB port for PC connection and support for USB pen drive for data recording and software updates.

Benefits

• Maximum pressure up to 40 bar
• Full-scale flow up to 950 cm3/min
• Vacuum measurement ranges available
• Measurement resolution down to 1 Pa and 0.01 cm3/min for flow
• 3.5" colour TFT touchscreen for parameter setting and readout
• High-precision micro-valve for leak simulation and manual needle valve for coarse adjustment
• Test data storage on USB pen drive

Accessories included

• Carrying case
• Universal power supply with USB output
• USB cable (type A to micro-USB)
• USB pen drive with update program
• Staubli quick connector RBE03
• T junction with Staubli connector

How it is used
The LTC is installed between the leak tester and the component under test. The operator sets or simulates leaks to verify detection thresholds and test programming. The instrument provides direct readout of pressure and flow and supports periodic calibration and verification procedures for traceability.

Technical specifications

• Maximum test pressure: up to 40 bar
• Vacuum range: down to -900 mbar (available ranges)
• Full-scale flow: up to 950 cm3/min
• Pressure resolution: down to 1 Pa
• Flow resolution: down to 0.01 cm3/min
• Display: 3.5" colour TFT with touchscreen
• Leak simulation: high-precision micro-valve with manual needle valve for coarse control
• Sensors: internal pressure sensor and flow sensor for direct measurement
• Quick coupling: Staubli® T fitting supplied (RBE03)
• Data logging: USB port and USB pen drive support for recording and software updates
• Use case: periodic check, calibration and certification of leak/flow testing equipment; supports ISO 9001 documentation
