Laboratory bioreactor

manualcompactmultiple

Product overview
Marposs is the preferable partner also as supplier of integrated systems. Dedicated to laboratories, this line of product is designed as the easiest and safest way to process chemical solutions. This magnetic separator system allows the operator to load and unload cylindrical containers ergonomically; containers are moved into a magnet for processing in a segregated area. The separation process is configurable across all its variables. This bioreactor is suitable to work flexibly with a wide range of container sizes, differing in diameter or height.

Operation and main features

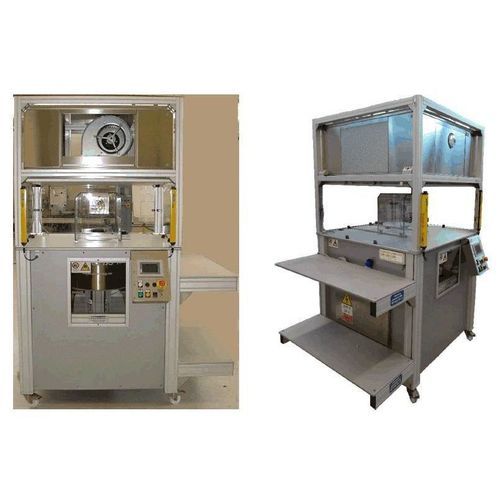

An extremely compact bench, designed to be used as a stand-alone station in a laboratory. Provided with wheels, it can be easily moved and connected even to a non-industrial voltage power grid. The structure provides two shelves to host, optionally, a printer and a peristaltic pump. A laminar flow unit can be integrated in the upper frame of the bench.
Operator loading side is protected by immaterial barriers whose intrusion stops the process. Once the container is manually placed on the elevator and the curtain is restored, the container under process is moved down through the toroid magnet to a pre-set position thanks to a linear axis. A sliding top cover is then manually positioned over the container to segregate the process.
Recipe parameters are managed through a touch graphic interface running on the built-in console panel located on the front of the machine. The same screen is used to display alarms or messages and to command the integrated devices.

Benefits

• Wide range of container capacity: from 1 l up to 50 l
• Auto-adaptation to container height
• Optionally available with peristaltic pump
• Optionally available with laminar flow
• Optionally available with UV lamp
• Optionally available with printer and I4.0 integration

Versions

• Manual part loading
• Available with different power supply voltage adaptation (according to specific request)
• Configured according to customer specifications

Caractéristiques / spécifications techniques

• Typical max container volume shown in illustration: up to 15 l
• Usable container capacity range: 1 l up to 50 l
• Dimensions (h × w × d): 2.300 × 1.250 × 1.250 mm (for the configuration with max container volume 15 l)
• Weight (about): 1.000 kg
• Mobile bench with wheels; two shelves for optional printer and peristaltic pump
• Optional integrated laminar flow in upper frame
• Operator protection via immaterial barriers that stop the process on intrusion
• Container handling: manual placement on elevator, movement through toroid magnet by linear axis, manual sliding top cover for process segregation
• Control: touch graphic interface on front console for recipe management, alarms and device commands
• Optional features: peristaltic pump, laminar flow, UV lamp, printer, Industry 4.0 integration, power supply adaptations
