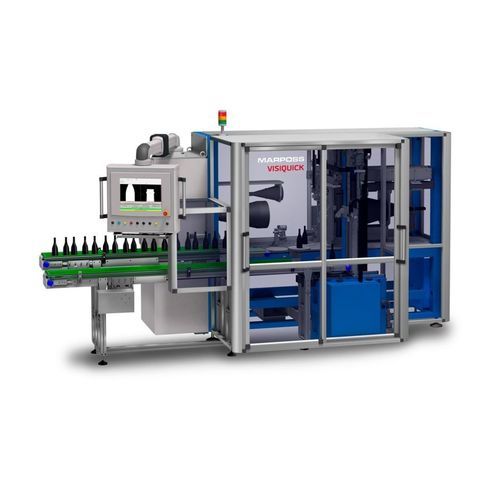

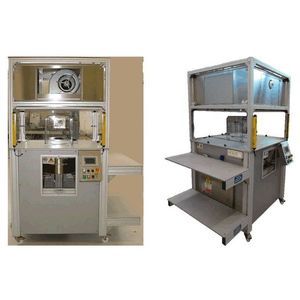

Optical inspection system VISIQUICK™

automatedPC-controllablecomputer-controlled

Product overview
VisiQuick™ is a flexible inspection system designed for dimensional and geometric checks, on a sample basis, of a wide range of glass containers with different sizes, shapes and colours. It can be installed in the laboratory or near the production line (cold end).

Description

• VisiQuick™ includes one or more modular measuring stations configurable per application.
• External dimensions measuring station: one or two high-resolution cameras with telecentric lens and collimated illuminator to measure external features such as total height, verticality, bent neck, mouth parallelism, body parameters (diameter, long/short sides and diagonal on non-round containers, height at a given diameter, etc.) and finish parameters on any finish type (diameters, heights, angles, radii, etc.).
• Inside diameter and profile measuring station: rotating/translating bore gauge for dynamic measurement of mouth inside diameter and profile.
• Weight and push-up measuring station: industrial scale and ultrasonic sensor integrated in the same station.
• Wall thickness measuring station: based on chromatic confocal technology for local wall thickness mapping.
• Labelling area profile measuring station (patent application filed): optical system to detect and measure sinks and bulges in the container labelling area.

Benefits

• Strong mechanical structure: steel frame (no aluminum profiles) to ensure measurement stability and repeatability.
• Flexibility: no retooling required on conveyors, pick & place or measuring stations when changing container types.
• Modularity and upgradability: additional measuring stations can be added as upgrades.
• Customizable solutions: levels of customization available according to customer requirements.
• Extensive measurement algorithm library: pre-existing algorithms and the possibility to develop new ones per customer needs.
• Industry 4.0 ready: full compatibility with production monitoring and data systems.
• Intuitive HMI: software on an industrial PC provides a clear and simple user interface.

Characteristics / Technical specifications

• Measurable container dimensions: Total height ≤ 435 mm; Body diameter or diagonal ≤ 190 mm.
• Inside diameter: from 13 to 50 mm (measurement depth up to 100 mm from the top). Other ranges on request.
• Push-up: ≤ 60 mm.
• Weight: ≤ 2 Kg.
• Wall thickness: ≤ 8 mm.
• Labelling area profile: inspection height ≤ 200 mm.
• Throughput: depending on machine model and station configuration; up to 120 containers/hour.
• Repeatability on a master: < 0.01 mm.
• Accuracy: < 10% of the tolerance.
