Semi-automatic inspection system ID SCAN™

bottlestand-alone

Product overview

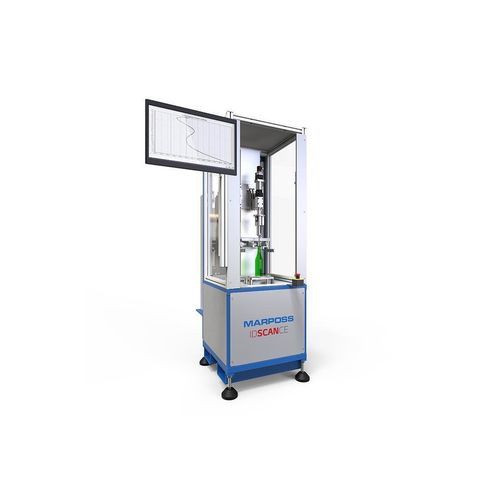

ID SCAN™ is a semi-automatic bench that measures, automatically and without mechanical retooling, bore diameter and the internal profile of glass bottles on a sample basis.

Versions

• ID SCAN™ CE: for use at the cold-end, in QC laboratories or production environments.
• ID SCAN™ HE: for use at the hot-end before annealing; includes features to withstand hot-end conditions and to measure non-tempered glass bottles.

Description
The bottle is manually loaded; the measurement cycle is fully automatic. A single-contact tactile bore gauge mounted on a rotating stage that can move vertically performs measurements.

Measurable characteristics

• Bore diameter at one or more programmable depths (no limit on the number of diameters to be measured).
• Internal profile in the vertical direction with graphical representation.

Benefits

• Accurate: single-contact tactile bore gauge for high-precision measurements.
• Comprehensive: measures diameters at multiple depths and provides a visual representation of the bore shape; supplies a graphic of diameter variation across the scanned area.
• Flexible: no mechanical retooling required between articles.
• MES compatible: integrates with common Manufacturing Execution Systems (e.g. Vertech SIL™ and others). ID SCAN™ receives article recipe data from the MES and sends mould-related measurement results back automatically; no operator programming needed on ID SCAN™.
• Simple to use.

Technical specifications

• Power supply: 220 - 240 V AC
• Measurable container overall dimensions: Height 70 - 435 mm; Body external diameter (or diagonal for non-round containers) ≤ 190 mm
• Range of measurable bore diameters and profile: 13 - 45 mm (max depth 70 mm)
• Measurement repeatability (evaluated on the master): ≤ ±0.01 mm
• Measurement time: from 30 s (depending on number of diameters and profiles to be measured)
• Ambient working temperature: ID SCAN™ CE: < 40°C; ID SCAN™ HE: < 50°C
