Cremation incinerator G-12

for medical wastewastecompact

Overview

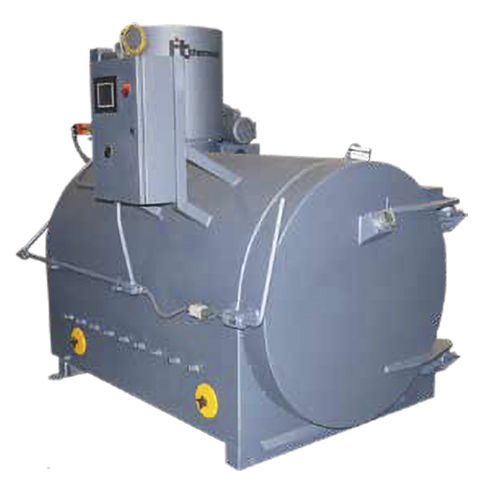

The Thermtec G-12 is a waste incineration system designed for reliable batch processing of general and pathological waste. It supports productive batch loads with touchscreen PLC control and offers optional upgrades to meet stricter emission residence requirements.

Key features

• Higher capacity and increased throughput in a proven design
• Controls: Touchscreen PLC
• Batch load operation
• Optional 1-second emission residence upgrade available
• Available configurations for General or Pathological waste

Technical drawings & images

• General arrangement (GA) drawing available (G-12 GA drawing)

Technical specifications

• Safe load capacity: 500 lbs / 227 kg
• Throughput rate: 120 lbs / 54 kg per hour
• Emission residence (retention time): up to 1 second (upgrade)
• Overall width: 76" / 1.93 m
• Overall height: 97" / 2.46 m (without stack)
• Overall length: 102" / 2.59 m
• Weight: 15,203 lbs / 6,895.96 kg
