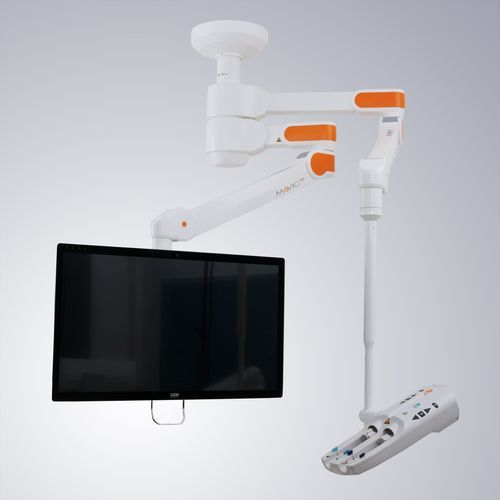

Height-adjustable support arm MRT Tragarmsystem

positioningspringfor lamp

Product description
Designed for use in MR rooms, the modular MR ceiling support arm system by MAVIG enables mounting of medical devices such as monitors, injectors or lights. The system optimizes space in magnetic resonance imaging suites and expands available maneuvering area.

Main features

• MR‑compatible system, tested for 0.55 T, 1.5 T and 3.0 T
• Option for internal cable routing for power, data and grounding
• Adjustable rotation stops to prevent collisions
• Support arms with payloads up to 26 kg on the spring arm and up to 40 kg on the cantilever arm
• Up to two support arms possible
• Maximum flexibility through modular combinations of cantilever and spring arms
• Different ceiling mast heights to suit various room concepts

Additional information
Ceiling mast lengths from 125 mm to 1200 mm allow optimal adaptation to different room heights. The spring arm is adjustable by +25° to −25°, with the height stop available either continuously adjustable or fixed. Electrified devices such as lights or injectors can be integrated.

Flexible monitor solutions
Optional single or dual monitor mounts (cantilever arm only) and an optional monitor handle.

Characteristics / technical specifications

• MR compatibility: tested for 0.55 T, 1.5 T and 3.0 T
• Internal cable routing: power, data, grounding
• Spring arm payload: up to 26 kg
• Cantilever arm payload: up to 40 kg
• Maximum number of support arms: 2
• Ceiling mast lengths: 125 mm – 1200 mm
• Spring arm adjustment range: +25° to −25°; height stop continuously adjustable or fixed
• Modular system: combinable cantilever and spring arm combinations
• Monitor options: single or dual monitor mounts (cantilever arm only), optional monitor handle
• Suitable for electrified medical devices (e.g. lights, injectors)
