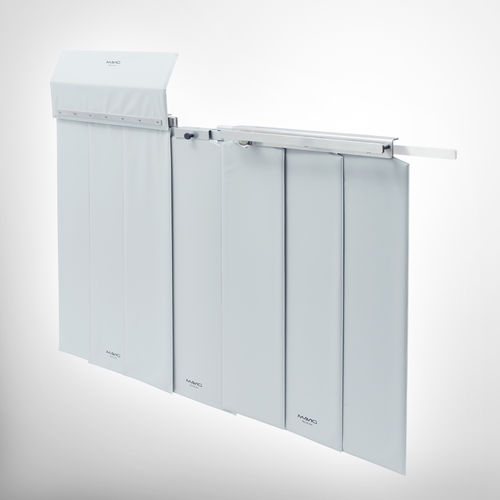

The lower body protection system has a stable construction, rounded edges for low injury risks and a significantly larger protection zone against X-ray radiation scattering for the examiner and the assistant.
Lower sway panels self-adjust to table inclinations of up to 15°
All protective shields have a lead equivalent of Pb 0.50 mm
Fitted with MAVIG’s universal adapter that can be mounted to table rails ranging from 7 x 25 mm to 10 x 30 mm
Solid construction and rounded edges reduce the risk of injuries
An Expanded Design for an Increased Protection Zone
Table-mounted shields for lower scattered radiation is an indispensable safety tool for the physician and staff. Such shields have long been an established standard in interventional radiology. In order to provide a considerably larger zone of protection from scattered radiation for the physician and staff, MAVIG has expanded its globally successful and proven UT60 series.
Individual soft lead rubber panels for better movement of the C-arm, higher doctor comfort, and easier part replacement
Includes an upper shield for the 500 mm wide lower shield section
Double joint adapter with additional protective panel for increased flexibility and enhanced positioning
460 mm long accessories rail (UT6030: 7.7 x 25 mm, UT6031: 9 x 25 mm, or UT6032: 10 x 25 mm) for mounting additional devices such as control panels up to a max. weight of 15.0 kg
Optimized design for thorough and time saving cleaning/disinfection
Includes 2 wall mounts for the upper shield and 500 mm wide lower shield
