Medical industry motor 934887brushless
Add to favorites
Compare this product
Characteristics
- Applications
- medical industry
- Operational mode
- brushless
- Power
340 W
(0.46 hp)- Rotational speed
4,130 rpm
(25,949.5553 rad.min-1)- Diameter
76 mm
(2.99 in)- Voltage
48 V
- Input current
7.08 A
- Torque
0.883 Nm
(0.6513 ft.lb)
Description

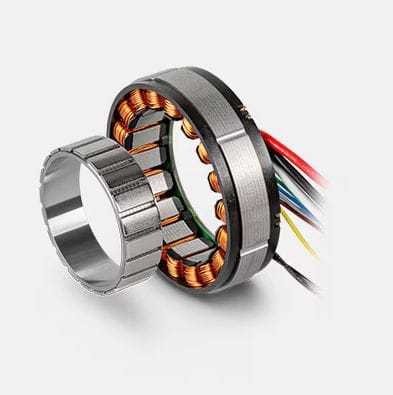

The EC frameless HT motor range provides high torque in a compact and light frameless design and is a versatile and cost-efficient solution. The short axial length enables very compact system designs, while the optimized electromagnetic layout delivers minimal cogging torque and smooth, precise motion in a wide variety of applications.
