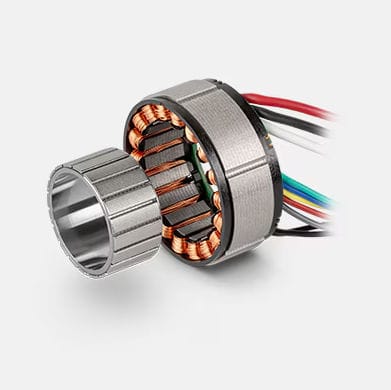

Brushless motor 936176
Add to favorites
Compare this product
Characteristics
- Operational mode
- brushless
- Power
250 W
(0.34 hp)- Rotational speed
4,640 rpm
(29,153.9798 rad.min-1)- Diameter
60 mm
(2.36 in)- Voltage
48 V
- Input current
5.76 A
- Torque
0.612 Nm
(0.4514 ft.lb)
Description

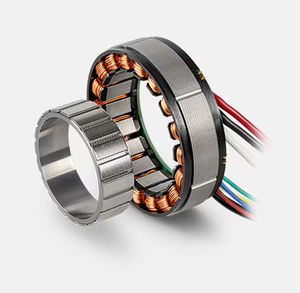

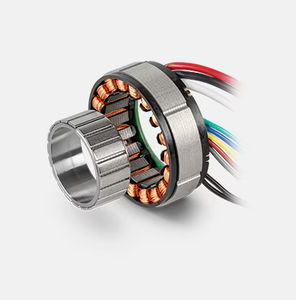

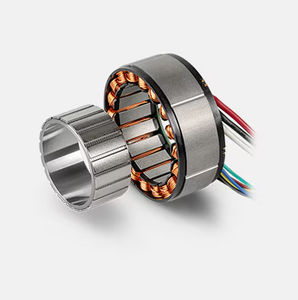

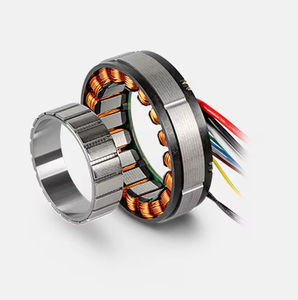

The EC frameless HT motor range provides high torque in a compact and light frameless design and is a versatile and cost-efficient solution. The short axial length enables very compact system designs, while the optimized electromagnetic layout delivers minimal cogging torque and smooth, precise motion in a wide variety of applications.
