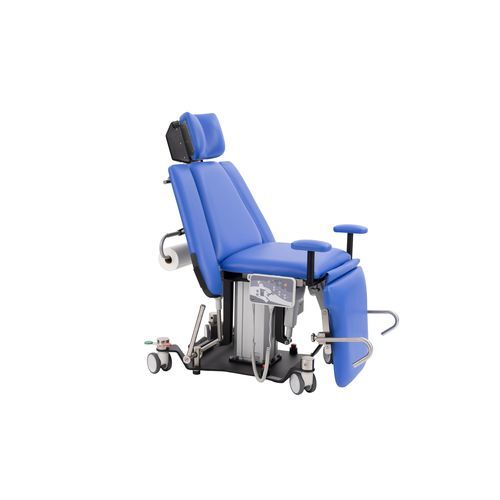

Ophthalmic examination chair SC-1

electricTrendelenburgheight-adjustable

Product overview
The SC-1 surgical ophthalmic chair offers a full range of patient positioning from sitting to supine to support ophthalmic surgical procedures. Designed for clinical and surgical environments, it is a medical device—use in accordance with the instructions for use or the label.

Key features

• Full range of patient positioning (sitting to lying) for comfortable positioning of patients of any age
• Unique headrest design for precise control of the patient's head during procedures
• Detachable armrests and cushioning supports; stainless steel push handles
• Easy movement of the chair while patient is on board
• Central locking gear to ensure stability during surgery
• Operates on AC/DC power supply
• Optional IV pole
• Selection of non-stitched upholstery available without surcharge

Dimensions
Length (flattened): 1 841 mm
Length (sitting position): 1 084 mm
Width: 874 mm
Height: see height adjustment range below

Technical specification

• Model: SC-1 surgical ophthalmic chair
• Height adjustment range: 594–744 mm
• Trendelenburg position: approx. 15°
• Maximum load capacity: 250 kg
• Input: 100–240 V AC, 50/60 Hz
• Battery pack: 24 V, 12 Ah; Charging: 24 V ±0.5 V, 1.2 A; Working time: up to 40 h
• Packaging: 1 pallet 120×80×160 cm, approx. 160 kg (gross)
• Optional: IV pole
• Upholstery: non-stitched options available
