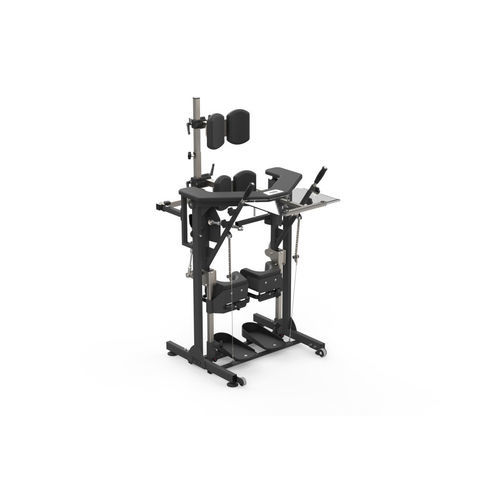

Adult standing frame PIO

pediatricheight-adjustable

Description The PIO is an active walk simulator designed to perform complex rehabilitation exercises in a standing position. Intended for use in rehabilitation departments, sanatoriums and at home. Available in two versions: PIO (B) for children and PIO (A) for adults. The device provides trunk stabilization and supports the lower limbs mechanically while the patient actively controls the movement using the upper limbs.

Features

• Electronic control panel with countdown timer and gait-cycle counter; acoustic alarm when exercise time is exceeded.
• Shelf/tabletop for portable media, documents or books.
• Ergonomic backrest for trunk support.
• Optional additional lateral and thoracic supports (available for both versions).
• Adjustable handgrips (adult version).
• Gloves to assist patients with weak hand grip (adult version).
• Adjustable footrests: height and 7-step depth adjustment (adult version).
• Electronic recorder logs exercise duration and number of steps; acoustic signal on time limit.

Operating principle The patient moves the upper limbs to drive mechanical elements that support the inert lower limbs. While maintaining an upright posture with trunk stabilization, the patient actively moves the upper limbs and shoulder girdle; the mechanism passively and alternately moves the hip, knee and ankle joints of the lower limbs, inducing coordinated trunk rotation.

Benefits

• Enables verticalization of the body.
• Improves respiratory capacity.
• Stimulates the circulatory system.
• Helps reduce risk of urinary tract complications by promoting bladder flushing.
• Provides dynamic loading of the osteoarticular system (supports osteoporosis risk reduction).
• Prevents contractures and joint degeneration; contributes to spasticity reduction.
• Supports improvement of the patient's psychological state.

Usage guidance Recommended exercise frequency: at least twice daily for approximately 15–30 minutes per session, adjusted according to clinical prescription.

Versions PIO is available in two versions: PIO (B) — child version; PIO (A) — adult version.

Technical data (table)
Clock [minutes]: PIO (B) - 1–59 | PIO (A) - 1–59
Gait cycles counter: PIO (B) - max. 9999 | PIO (A) - max. 9999
Range of motion of lower limbs [°]: PIO (B) - max. ±18 from vertical | PIO (A) - max. ±18 from vertical
Height of patient [cm]: PIO (B) - 125–145 | PIO (A) - 165–190
Max. weight of patient [kg]: PIO (B) - 90 | PIO (A) - 95
Upholstery colour: PIO (B) - terracotta | PIO (A) - black
Dimensions (L x W x H) [mm]: PIO (B) - 950 x 664 x 980 | PIO (A) - 1198 x 760 x 1195 (single) / 1198 x 760 x 1560 (double)
Power supply [V]: PIO (B) - battery 3V type CR2032 | PIO (A) - battery 3V type CR2032
Weight [kg]: PIO (B) - 41 (49 with lateral and thoracic support) | PIO (A) - 55 (single backrest) / 61 (double backrest)
Range of height adjustment of footrest [mm]: 85 (both versions)
Range of adjustment of knee holder [mm]: 73 (both versions)
Range of grip bars adjustment [mm]: 188 (both versions)
Range of buttock rest adjustment (horizontal) [mm]: 184 (both versions)
Range of back rest adjustment (horizontal) in ver. with double back rest [mm]: 184 (both versions)

Technical specifications

• Model versions: child (B) and adult (A).
• Clock: adjustable 1–59 minutes.
• Gait cycles counter up to 9999 cycles.
• Lower-limb ROM: ±18° from vertical.
• Supported patient height ranges: 125–145 cm (B), 165–190 cm (A).
• Maximum patient weight: 90 kg (B), 95 kg (A).
• Upholstery colours: terracotta (B), black (A).
• Control: electronic recorder with countdown and acoustic alarm.
• Recorder power: CR2032 3V battery.
