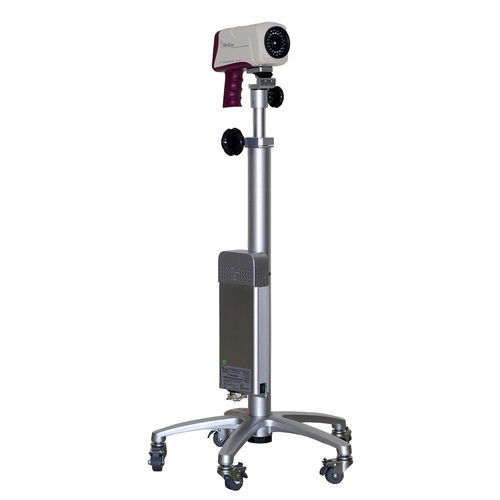

Video colposcope AL-106

digital

Product Overview
The MedGyn AL-106 HD is a digital video colposcope that combines spot-on-spot subtraction technology, CCD optics and dedicated filters to improve visualization of vascular and epithelial patterns. Integrated video capture and an image-freeze function support clinical documentation workflows. Monitor sold separately.

Key Features

• 3.2 Megapixel image sensor
• Up to 40× magnification
• HDMI output for external monitors
• White and blue LED illumination
• 1080 horizontal resolution
• SONY camera module
• Three green filters for enhanced vascular contrast
• Auto and manual focus modes
• Built-in video recording and image-freeze function

Technical Specifications

• Model identifiers: 010466HD; 010466SAHD (with swing arm)
• Image sensor resolution: 3.2 MP
• Magnification: up to 40×
• Connection: HDMI output
• Light source: White/Blue LED
• Horizontal resolution: 1080
• Camera manufacturer: SONY
• Filters: 3× green filters
• Focus: Auto / Manual
• Functions: Video capture; Image freeze
• Weight: 28 lbs
• Dimensions: 21 × 21 × 11 in

Accessories

• MedGyn — Colposcope Monitor — Product ID: 010010 (sold separately)
• MedGyn — Colposcope Monitor Stand (for AL-102, AL-105, AL-106), adjustable with rolling base — Product ID: 010490

Product IDs & Dimensions
Product IDs: 010466HD (AL-106 HD Digital Video Colposcope); 010466SAHD (AL-106 HD Digital Video Colposcope with swing arm). Weight: 28 lbs. Dimensions: 21 × 21 × 11 in.

Clinical Applications

• Colposcopic examination and documentation
• Evaluation of cervical and vaginal epithelial lesions
• Vascular pattern assessment with green filters
• Image capture for patient records and consultation
