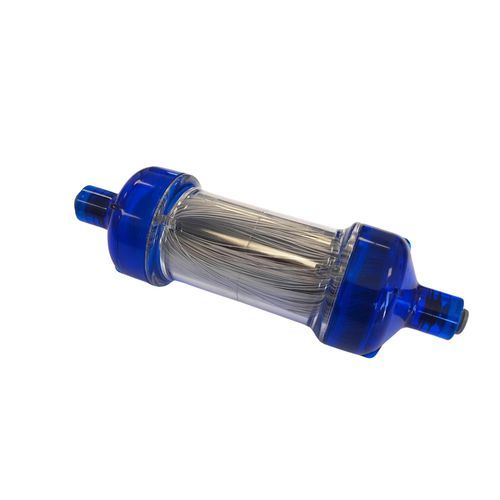

Bacterial filter Graphil

membranewaterfor water purifier

Description
The Graphil inline filters, developed by Medica with funding from the European Union under the Graphene Flagship consortium, provide an innovative solution for water purification. These filters use the GraphiSulfone® membrane, an advanced PSU polymer matrix enriched with graphene oxide (GO), for ultrafiltration.

Main features

• Innovative membrane: The GraphiSulfone® ultrafiltration membrane delivers high bacterial (9 LRV) and viral (8 LRV) retention and enhances adsorption of emerging contaminants such as PFAS, heavy metals, antibiotics and pesticides due to graphene oxide (GO).
• Certifications: Potability certified according to EU Directive 2020/2184 and Italian DM 174.
• Mechanical resistance: Designed for high mechanical strength.
• Compact design: Small footprint allows easy under-sink installation and does not require routine maintenance.
• Quick connect: Available with John Guest quick-connect for 1/4" tubing (OD 6.35 mm).

Applications
The Graphil inline filters are suitable for under-sink installation to purify water intended for human consumption (drinking and cooking).

Production and quality control
Each filter is 100% integrity-tested to ensure structural integrity and the performance of the hollow fiber membranes, ensuring reliability and safety.

Technical specifications

• Membrane: GraphiSulfone® (PSU matrix enriched with graphene oxide - GO)
• Bacterial retention: 9 LRV
• Viral retention: 8 LRV
• Reported contaminants removed: PFAS, heavy metals, antibiotics, pesticides
• Connection: John Guest quick-connect for 1/4" tubing (OD 6.35 mm)
• Design: compact, easy under-sink installation
• Maintenance: maintenance-free
• Certifications: EU Directive 2020/2184, DM 174
• Quality control: 100% integrity testing
