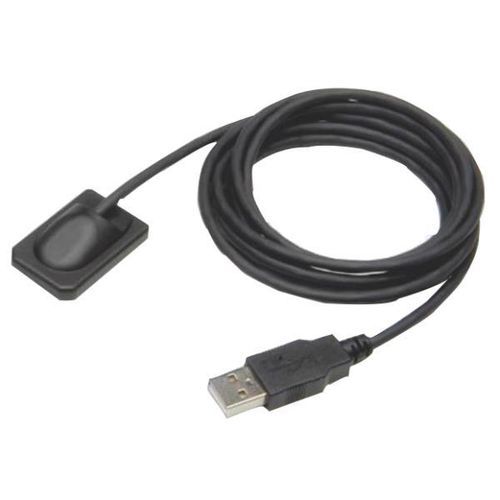

Intraoral for veterinary radiography flat panel sensor MasterDent portablewaterproof
Add to favorites
Compare this product
Characteristics
- Applications
- intraoral for veterinary radiography
- Options
- portable, waterproof
Description
Overview
MasterDent is a CMOS area image sensor designed for dental X-ray imaging. It delivers 2.1 megapixels (1300 x 1700) with 20 x 20 μm pixels and uses a fiber optic plate (FOP) as the input window to preserve image quality and sensor longevity. The sensor integrates a monitoring photodiode for X-ray dose detection, supports up to three units connected to one PC, and is dust- and water-proof (equivalent to IP67).
Main Features
Monitoring Photodiode
The sensor includes a monitoring photodiode along the entire perimeter of the effective pixel area. During acquisition the photodiode measures dose rate and compares it to an adjustable threshold; when the threshold is exceeded the image is captured automatically. Thresholds are manually selectable to ensure consistent image quality.
Detection / Integration Modes
MasterDent provides flexible detection and exposure modes. X-ray dose detection can be automatic (using the monitoring photodiode) or disabled for manual selection. Exposure can be automatic or manual.
Dimensions & Weight
Sensor dimensions: 41.9 x 30.4 x 5.6 mm. Cable length: 2000 mm. Approximate weight: 60 g.
Technical Specifications
MasterDent is a CMOS area image sensor designed for dental X-ray imaging. It delivers 2.1 megapixels (1300 x 1700) with 20 x 20 μm pixels and uses a fiber optic plate (FOP) as the input window to preserve image quality and sensor longevity. The sensor integrates a monitoring photodiode for X-ray dose detection, supports up to three units connected to one PC, and is dust- and water-proof (equivalent to IP67).
Main Features
- Pixel size: 20 x 20 μm
- Pixel format: 1300 (H) x 1700 (V) — 2.1 MP
- Resolution: 12 LP/mm
- Dynamic range: 57 dB
- Interface: USB 2.0
- Integrated dose meter
- Ingress protection: dust & water proof (equivalent to IP67)
- Multi-unit support: up to three sensors per PC
Monitoring Photodiode
The sensor includes a monitoring photodiode along the entire perimeter of the effective pixel area. During acquisition the photodiode measures dose rate and compares it to an adjustable threshold; when the threshold is exceeded the image is captured automatically. Thresholds are manually selectable to ensure consistent image quality.
Detection / Integration Modes
MasterDent provides flexible detection and exposure modes. X-ray dose detection can be automatic (using the monitoring photodiode) or disabled for manual selection. Exposure can be automatic or manual.
- Automatic Detection / Automatic Integration
- Automatic Detection / Manual Integration
- Manual Detection / Manual Integration
Dimensions & Weight
Sensor dimensions: 41.9 x 30.4 x 5.6 mm. Cable length: 2000 mm. Approximate weight: 60 g.
Technical Specifications
- Sensor type: CMOS area image sensor for X-ray imaging
- Effective pixels: 1300 (H) x 1700 (V) — 2.1 MP
- Pixel size: 20 x 20 μm
- Resolution: 12 LP/mm
- Dynamic range: 57 dB
- Interface: USB 2.0
- Dose monitoring: integrated photodiode (adjustable threshold)
- Dose meter: equipped
- Ingress protection: dust & water proof (equivalent to IP67)
- Multi-unit support: up to three sensors connectable to one PC
- Detection/Integration modes: Automatic/Automatic; Automatic/Manual; Manual/Manual
- Dimensions: 41.9 x 30.4 x 5.6 mm
- Cable length: 2000 mm
- Weight: ~60 g
