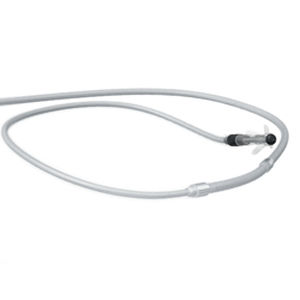

Cardiac stimulation stimulation lead PHYMOS 4 series

quadrupolar

Phymos 4 model allows to perform an effective VDD pacing with floating atrial electrodes, thanks to the 3 cm dipole which from the beginning characterizes MEDICO MEDICO S.p.A.system: it guarantees an excellent reliability of the detection of sino-atrial node, also in the long-term. It is compatible with a 7 Fr introducer and is easily handled on implant, with easy and effective positioning. The material of the atrial electrodes is Pt-Ir whereas ventricular electrodes is microporous Ti coated by Pt. They allow satisfactory performance both in pacing and sensing, in addition an high visibility in scopy. Technical features Atrial electrode material: platinum-iridium Ventricular electrodes material: Microporous titanium coated by platinum Sheath material: silicone, medical grade Distance between atrial dipole and ventricular electrode: 9, 11, 13 e 15 cm Atrial dipole length: 30 mm Length: 58, 62 cm Atrial and ventricular connection: IS-1 bipolar Suggested introducer: 7 Fr
