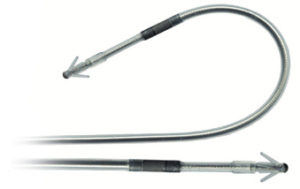

Cardiac stimulation lead CAT400

monopolarbipolar

Passive fixation bipolar pacing lead used for ventricular implants. The electrodes, manufactured in microporous titanium coated by platinum, provides a good intrinsic signal detection and a reduced pacing energy. Handiness and reliability, features which are always presents in all leads manufactured by Medico S.p.A. are present also in 400 model. Technical features Electrode material: microporous titanium covered by platinum Sheath material: silicone, medical grade Total length: 60 cm Connection: IS-1 bipolar Suggested introducer: 7 Fr Passive fixation “J” shaped bipolar pacing lead used for atrial implants. The electrodes, manufactured in microporous titanium coated by platinum, provides a good intrinsic signal detection and a reduced pacing energy. Handiness and reliability, features which are always presents in all leads manufactured by Medico S.p.A. are present also in 400J model Technical features Electrode material: microporous titanium coated by platinum Sheath material: silicone, medical grade Total length: 53 cm “J” shaped Connection: IS-1 bipolar Suggested introducer: 7 Fr
