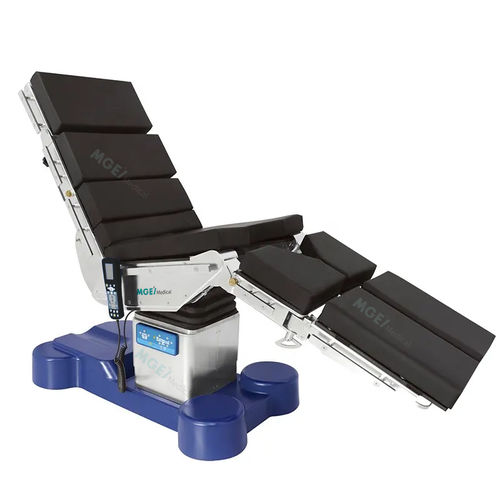

Universal operating table OTS9

hydraulictiltingmobile

Electric-hydraulic operating table with imported hydraulic control system for smooth, quiet positioning Height range 600–1100 mm with ≥500 mm lifting stroke for versatile surgical access Seven-section modular tabletop with unified interfaces and flexible module configuration Radiolucent carbon fibre tabletop panel with X-ray attenuation coefficient ≤0.44 mmAl Built-in electric kidney bridge with lift ≥125 mm (imported motor) Longitudinal tabletop translation ≥320 ±20 mm and electric brake system for OR workflow support The MGE-OTS9 Electric Hydraulic Surgical Table is a high-automation operating table engineered for multi-specialty procedures, combining an imported hydraulic control system with modular tabletop architecture. The table provides a 600–1100 mm height range and a lifting stroke ≥500 mm, supporting routine general surgery as well as orthopaedic workflows where C-arm access and positioning precision are required. A long and widened tabletop design improves patient support and procedural flexibility, while an electric-hydraulic drive system is described to deliver quiet, stable movement without noticeable jolts. For imaging-guided procedures, the tabletop panel is specified as imported carbon fibre, offering low X-ray absorption and a stated X-ray attenuation coefficient ≤0.44 mmAl. The table also incorporates features such as electric longitudinal translation, an electric brake system, and multi-mode control options to streamline positioning and daily operating room use. Key Features Quality management compliance: certified to ISO 9001:2015 and ISO 13485:2016 CE conformity: EU CE safety/quality certification provided
