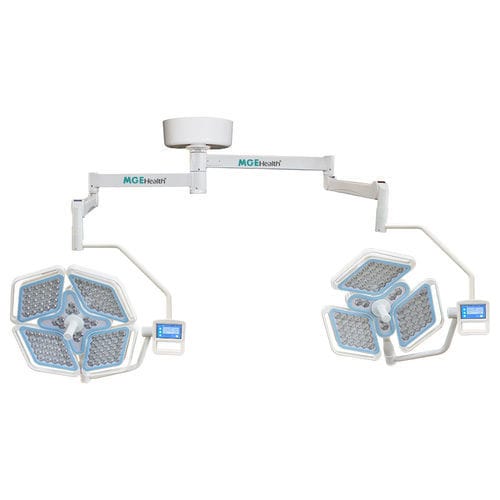

Ceiling-mounted surgical light SLD4

LEDfor operating rooms2-arm

Short description

• Laminar-flow optimised lamp head
• Advanced cool-light LED source for extended lifetime
• Stable, true-to-tissue cool light output
• Precision manual focusing system
• Advanced control system with memory function

Description
The MGE-SLD4 is a modern LED surgical shadowless lamp engineered for laminar-flow operating rooms. It combines an ultra-thin petal-style lamp head, stable colour performance, deep illumination and flexible positioning to support clinical workflows while ensuring hygienic handling.

Product Features

• Laminar-Flow Optimised Lamp Head
  • Petal-style ultra-thin design, maximum thickness ≤10 cm to enhance airflow in laminar-flow theatres
  • Premium ABS housing with corrosion and chemical (acid/alkali) resistance for extended service life
• Advanced Cool-Light LED Source for Extended Lifetime
  • Imported LED cold light source with energy-saving operation and rated life ≥60,000 hours
  • Surgeon head temperature rise <1°C
• Stable, True-to-Tissue Cool Light Output
  • No infrared or ultraviolet radiation to minimise heat build-up at the surgical site
  • Constant colour temperature with minimal decay; soft, non-glaring illumination close to natural daylight
• Precision Manual Focusing System
  • Practical manual focusing technology with smooth, stepless operation
  • Detachable handle compatible with high-temperature sterilisation (≤160°C)
• Deep, High-Intensity Illumination
  • Computer-aided modular optical design with multi-LED beam convergence
  • Illumination depth ≥1200 mm with central illuminance up to ≥160,000 lux
  • Adjustable colour temperature range 3700K–5000K to better reflect tissue colour
• Excellent Shadowless Performance
  • Scientifically curved lamp head and multi-point light source design provide a uniform light field
  • Maintains effective illumination even when partially blocked
  • Lamp rotation radius ≥182 cm; lamp head can be positioned near-vertical for flexible angling
• Advanced Control System with Memory Function
  • LCD button control for power, illuminance and colour temperature adjustment
  • Digital memory function stores preferred settings
  • Multi-group, multi-channel control design ensures single LED failure does not compromise overall lighting
• Universal Suspension System
  • Rotating arm in octagonal alloy structure for stability
  • Spring balancing system for smooth movement, precise positioning and wide adjustment range
  • Includes fatigue correction and positioning feel adjustment for long-term use

Product Parameter
LED Quantity: 112 / 81 pcs
Illuminance (Lux): 80,000–160,000 / 60,000–140,000
Colour Temperature (K): 3700–5000
Light Field Diameter (mm): 160–350
Colour Rendering Index (CRI): 85–98 (adjustable)
Illumination Depth (mm): ≥1200
Surgeon Head Temperature Rise: <1°C
Power Supply: AC100–240V, 50/60Hz
Input Power (W): 400

Installation video
Installation and arm-structure demonstration video available (YouTube link provided on product page).

Technical specifications

• LED Quantity: 112 / 81 pcs
• Central illuminance: up to ≥160,000 lux (product parameter range provided)
• Illumination depth: ≥1200 mm
• Colour temperature: 3700K–5000K (adjustable)
• Colour Rendering Index (CRI): 85–98 (adjustable)
• Surgeon head temperature rise: <1°C
• LED lifetime: ≥60,000 hours
• Power supply: AC100–240V, 50/60Hz
• Input power: 400 W
• Lamp head max thickness: ≤10 cm (petal-style ultra-thin design)
• Housing: premium ABS, corrosion and chemical resistant
• Focus: precision manual, stepless focusing, detachable sterilizable handle (≤160°C)
• Control: LCD button control with digital memory function; multi-group multi-channel redundancy
• Suspension: octagonal alloy rotating arm, spring balancing system, rotation radius ≥182 cm
• Certifications: CE
• Packing: Carton or wooden case
• Ports of shipment: Shanghai, NingBo, TianJin, QingDao, GuangZhou
• Sample/Service/OEM: Available
• Warranty: 2 years
