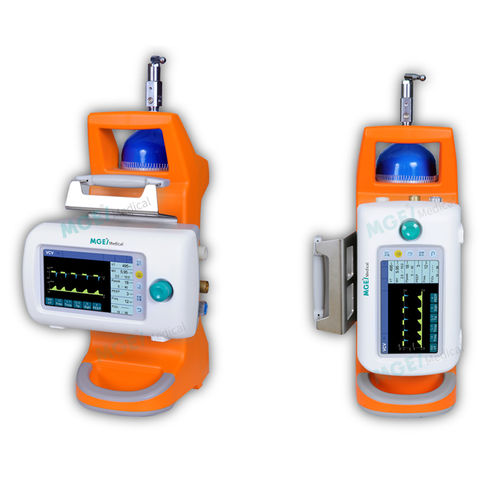

Emergency ventilator MGE-ERVW22

electronicCPAPSIMV

Operating Panel: English (Standard) Drive: Gas Driven Display: 7-inch LCD Gas source: Pure air or Oxygen Application: Applied for child and adult (Weight>5kg) The MGE-ERVW22 Emergency Ventilator is a compact, gas-driven ventilator designed for rapid response in critical care settings. Equipped with versatile ventilation modes and reliable monitoring features, this ventilator ensures optimal respiratory support for both children (≥5kg) and adults. Key Features: User-Friendly Operation: 7-inch LCD display with an English interface for precise control. Ventilation Modes: Includes VCV, SIMV, AC, SIGH, MANUAL, CPAP, with optional PCV and PSV modes. Wide Tidal Volume Range: Adjustable from 20 to 2000ml, meeting varied patient needs. Customizable Ratios: I:E ratio from 4:1 to 1:8; rate adjustable from 4-100/min or 1-40/min under SIMV mode. Adjustable Oxygen Concentration: FiO2 levels adjustable between 40% and 100%. Comprehensive Alarms: Includes alarms for tidal volume, minute volume, airway pressure, power status, and battery life. Portable Design: Lightweight main body (<4kg) with a 3L oxygen cylinder and medical-grade silicon mask/circuit.
