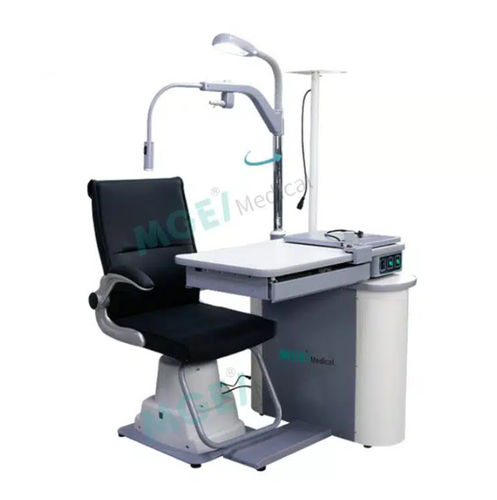

Ophthalmic workstation MGE-OCT8

with chairwith lighttabletop

Product Overview The MGE-OCT8 Ophthalmic Examination Unit is designed for clinical ophthalmology settings, combining an electric lifting bullseye swing arm, electric chair lift and configurable tabletop layout to streamline examinations and procedures. The unit provides ample instrument storage and adjustable patient support for efficient diagnostics.

Short Features

• Electric lifting bullseye swing arm
• 90° rotation to open the large table
• Electric chair lift
• 90° adjustable armrest
• Large-capacity drawer for instruments

Key Features

• Electric lifting bullseye swing arm: enables precise positioning of ophthalmic devices and accessories.
• 90° rotation: allows the large tabletop to open fully for expanded workspace and device access.
• Electric chair lift: facilitates accurate patient height adjustment for examination alignment.
• Adjustable armrest (90°): improves patient comfort and examiner access during procedures.
• Large capacity drawer: practical storage for instruments, consumables and small devices.

Technical Parameters Item — Parameters
Origin — China
Product Name — Ophthalmic Examination Unit
Model — MGE-OCT8
Overall Dimensions — 910 × 1080 × 1920 mm (35.83 × 42.52 × 75.59 in)
Large Tabletop Size — 880 × 500 mm (34.65 × 19.69 in)
Small Tabletop Size — 410 × 258 mm (16.14 × 10.16 in)
Drawer Dimensions — 540 × 378 × 60 mm (21.26 × 14.88 × 2.36 in)
Small Table Sliding Stroke — 420 mm (16.54 in)
Swing Arm Lifting Travel — 300 mm (11.81 in)
Swing Arm Rotation Range — 90°
Tabletop Rotation Angle — 90°
Built-in Lamp Power — 20 W
Total System Power — 120 W
Height (Ground to Swing Arm) — 1400 – 1720 mm (55.12 – 67.72 in)
Projection Base Height — 1500 mm (59.06 in)
Chair Lift Travel — 160 mm (6.30 in)
Chair Back Size — 500 × 620 mm (19.69 × 24.41 in)
Power Supply — AC110—240V, 50/60Hz
Net Weight — 130 kg (286.60 lbs)

Certifications and Packaging

• Certifications: CE
• Warranty: 2 years
• Packing: Carton or wooden case
