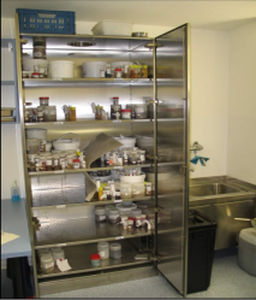

Supply cabinet MA-1251

formalinstainless steel

In the field of tissue diagnostics, the samples are always used for fixation in containers with formalin. The vessel sizes range from small bottles for the storage of small biopsies up to transport buckets for large lung preparations. Since the containers are never completely sealed, they must be extracted special cabinet. The size of the cabinet depends on the advent of the tissue samples or the size of the institute. Several cabinets can be placed side by side, whereby there are special designs with tinted safety glasses and double-walled design for S2 and S4 laboratories. The floor is designed as a removable safety tray, which provides a certain part of the liquid in the cabinet Description Cabinet body designed as a stable, self-supporting construction. Socket panels are to be fitted on 3 sides with clip technique on the feet. Consolidate. Front base panel with long holes 15 x 7 mm slotted for the supply of the supply of the supply. Base height 100mm. Side walls, floor and ceiling double-walled, 18mm thick, interior and outer shell stainless steel 1.0mm, material 1.4301, Brushed surface (320) for best hygiene conditions. Soil or Ceiling with an exhaust air nozzle 100x1.5mm, 70mm top over Standing. Rear wall single-walled, stainless steel 1.0mm, material EN/DIN 1.4301, surface brushed inside and outside. Doors double-walled, 17mm thick, inner and outer shell 1.0mm, material EN/DIN 1.4301, surface inside and outside brushed, on the inside at the edge with circulating rubber profiles (on the end faces of side panels, floor and lid on). In the area are with rubber clamping profiles framed glass panes
