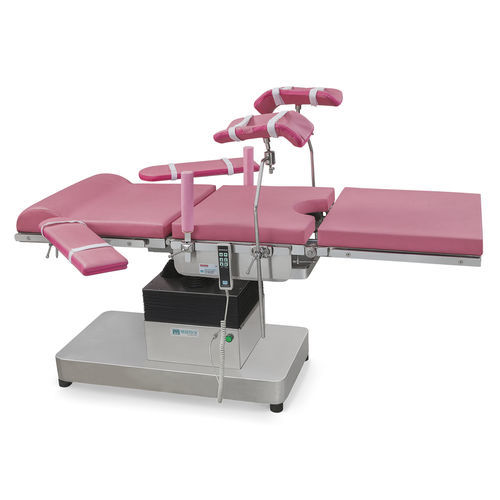

Electromatic drives with noiseless, jerk less and smooth positioning.
Three section upholstered table top ensures maximum comfort to the patient.
Table positions i.e. Height adjustment, Trendelenburg, Reverse Trendelenburg, Back Section/Chair Position are controlled by corded handset with graphical icons.
Detachable leg sections offer perineal access & allow to attach drainage tray.
Integrated weight compensation by manual adjustment of leg section.
Large size stainless steel drainage tray
Non-corrosive stainless steel 304G construction including table top frames, accessories rail, base cover and column telescopic covers.
Easy for cleaning & hygiene.
The powered movements are activated by Imported Linear Actuators.
Four easy glide, antistatic castors, two of which are swivelling, ensure mobility.
Pedal operated central braking system secures the table in its place while in use.
Technical Constraints :
Top dimension:L 1750 x W 600 mm
Height adjustment with pad:700 mm – 950 mm
Trendelenburg / Reverse Trend:15° / 15°
Back Rest (upward / downward):60° / 0°
Leg Rest (upward / downward):15° / 90°
Patient Weight Capacity:150 kgs (330 lbs)
