universal operating table / orthopedic / ophthalmic / ENT

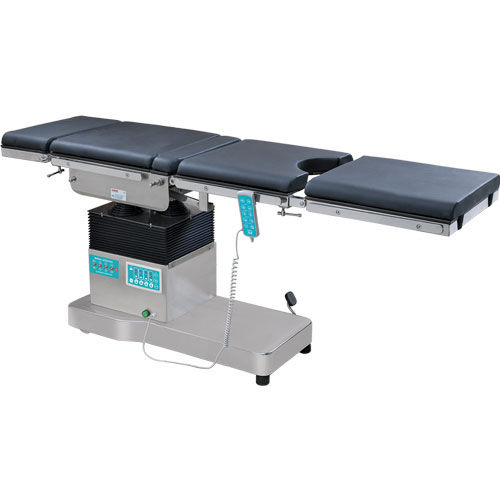

Astra 101+



  • Applications:

    universal, orthopedic, ophthalmic, ENT, urological, neurosurgery

  • Operation:


  • Features:

    height-adjustable, on casters, tilting, X-ray transparent, rotating

  • Patient type:


  • Other characteristics:

    eccentric column, with interchangeable table tops


Features :
Electro Manual drives with noiseless, jerk less and smooth positioning.
Table positions i.e. Height adjustment, Trendelenburg, Reverse Trendelenburg, Lateral Tilt, Back Section/Chair Position, Flex-Reflex are controlled by dual operations i.e. Corded Handset & Manual Override with graphical icons.
Zero Position to make table neutral by simply pressing '0' positioning button.
Remote has LED backlit with symbolic position figures to use even in darkness.
Manually gear operated Kidney Elevator.
Table top is divided into 5 sections providing numerous articulation possibilities.
Radiolucent table top is C-ARM & X-RAY compatible over the entire length of the table.
No cross bar on the table top making it very suitable for fluoroscopy.
Offset column provide unrestricted access of C-ARM.
Detachable-Interchangeable head and leg sections provide further versatility.
Integrated weight compensation by manual adjustment of the head and leg sections.
Non-corrosive stainless steel 304G construction including table top frames, accessories rail, base cover and column telescopic covers.
Four easy glide, antistatic castors, two of which are swiveling, ensure mobility.
50mm decompressed mattress with greater comfort & easy to clean.
Pedal operated braking system secures the table in its place while in use.

Technical Constraints :
Top dimensionL 1980 x W 533 mm
Height adjustment with pad750 mm – 1050 mm
Trendelenburg / Reverse30° / 25°
Lateral tilt left/right20° / 20°
Kidney elevator150 mm
Back Rest (upward / downward)80° / 25°
Leg Rest (upward / downward)15° / 90°
Head Rest (upward / downward)20° / 90°
Power supply24VDC
Patient Weight Capacity200 kgs (440 lbs)
