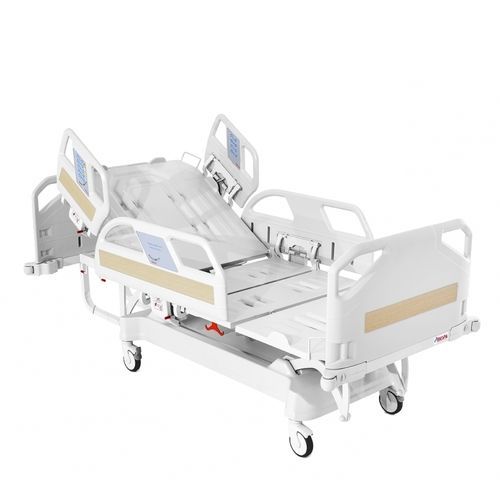

NG 5010 PLUS
Electronic ICU and Service Bed
4 motors
Electronic adjustments of backrest, footrest, height
Trendelenburg and Reverse Trendelenburg functions
Fowler, Vascular and Cardiac positions
Auto-contour
Equipped with 4 control panels, 2 for nursing staff and 2 for patients use
Function-Lock System to prevent misuse by patient or unauthorized personnel
Angle indicator for backrest adjustment and Trendelenburg positions
Auto-regression system
Underbed illumination
Auto-CPR button
Easily cleanable, lockable and fold-away Polypropylene side rails
Lockable and detachable Polypropylene head and foot boards
4 section, detachable ABS mattress platform
ABS covered sub-frame
Electrostatic powder coated metal frame
Gradually adjustable footrest
Drainage bag hooks at both sides
IV pole sockets located at four corners
Protective plastic corner bumpers
360o swivel, diagonal lockable castors
Height adjustable stainless steel IV pole
TECHNICIAL SPECIFICATIONS
Backrest Angle : 0°-70°
Footrest Angle : 0° - 42°
Trendelenburg Angle : 0° - 14°
Reverse Trendelenburg Angle : 0° - 14°
Castor Diameter : 125 mm
Safe Working Load Capacity : 250 kg
External Dimensions : 100 x 216 cm
Weight : 114 kg
Underbed Clearance : 17 cm
External Dimensions : 100 x 216 cm
Mattress Platform : 85 x 195 cm
Height (without mattress) : 44 - 84 cm
Power In : max. 3,15A100V – 240V ~ 50/60 Hz
Electrical Shock Protection : Clas I, Type B
Liquid Ingress Protection : IPx66
