Pressure sensor ME504
medical

pressure sensor
pressure sensor
pressure sensor
pressure sensor
Add to favorites
Compare this product


Characteristics

Evaluation type
pressure
Applications
medical
Pressure range

Max.: 800 bar
(11,603.02 psi)

Min.: 0.5 bar
(7.25 psi)

Description

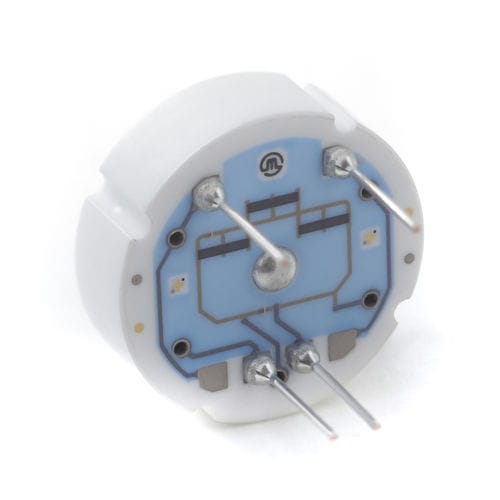

Flush mount, mV/V, pressure sensor Metallux me504 flush mount piezoresistive pressure sensors for gauge, absolute or sealed gauge pressure measurement. High reliability differential mV/V compensated pressure sensors. For easy signal conditoning PCB integration. Metallux ME504 pressure sensors are made with a ceramic base plate and a flush diaphragm and work following the piezoresistive principle. The Wheatstone bridge is screen printed on one side of the flush ceramic diaphragm which is, in turn, glued to the sensor’s body. The bridge faces the inside where a cavity is made and the diaphragm’s opposite side can therefore be exposed directly to the medium to be measured. Because of the Al2O3 ceramic excellent chemical resistance (aggressive gases, most of solvents and acids, etc.), no additional protection is normally required. On the sensor body, layout is optimized to allow easy mounting of signal conditioning PCB when requested. Metallux ME504 sensors are thermally compensated by laser-adjustable PTC resistors and the use of ceramic ensures a high linearity across the entire range of measurement, reducing effects of hysteresis to a minimum.
