Temperature sensor ME772

pressurecalibrationmedical

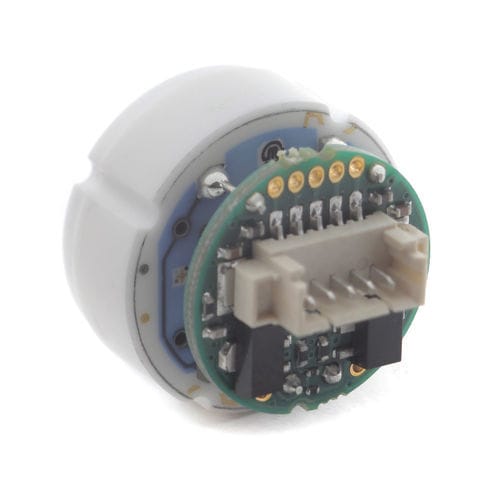

Flush mount, 0 - 10 V Non ratiometric output, pressure transducer Metallux ME772 flush mount piezoresistive pressure sensors for gauge, absolute or sealed gauge pressure measurement. High reliability. Integrated signal conditioning 0 - 10 V Non ratiometric calibrated and compensated pressure transducers. Metallux ME772 pressure sensors are made with a ceramic base body glued to flush diaphragm and work following the piezoresistive principle. The Wheatstone bridge is screen printed on one side of the ceramic diaphragm. The bridge faces the inside of the sensors where a cavity is made. Signal conditioning electronics are added to generate 0...10 V non ratiometric output. Pressure and temperature calibration are done electronically with the on-board ASIC and can be performed in bar (ME772) or in psi (MEP772). Electronics provide offset and span correction when temperature changes. Aging detection is constantly performed. This new method guarantees good precision and long-term stability. The Metallux ME772 family meets EMC requirements. The ASIC stores production lot specific data for sensor traceability and allows custom calibration. Due to the excellent chemical immunity of the the Al2O3 ceramic, the ME772 sensors are suitable for nearly all aggressive media.
