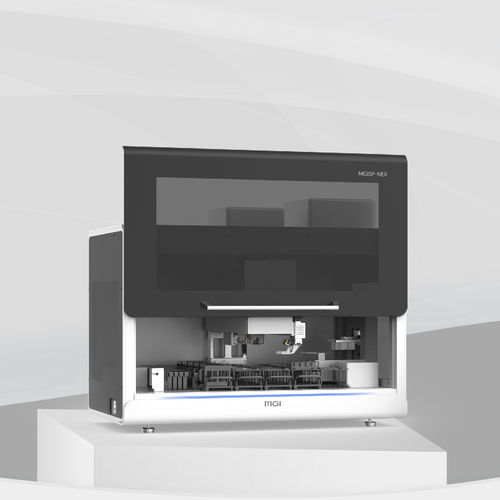

Clinical diagnostic nucleic acid extractor MGISP-NEX

MGISP-NEX is a versatile automated nucleic acid extractor independently developed by MGI. It equips with an independent 8-channel pipetting module and magnetic rod extraction module. The independent 8-channel pipetting can perform liquid transferring, which reduces manual intervention and achieves a higher degree of automation.The magnetic rod extraction module has two types of magnetic rods: one with 24 magnetic rod heads and another with 96 magnetic rod heads, which can be flexibly interchanged. Features Flexible Pipetting: The independent 8-channel pipetting can perform liquid transferring, which reduces manual intervention and achieves a higher degree of automation. Disinfection System: The triple anti-pollution design ensures sample safety and reduces cross-contamination. Flexible Extraction: The flexible interchangeable magnetic rod module can meet the needs of different scenarios. System Parameter Working Environment Relative humidity: 20% RH~80% RH Atmospheric pressure: 80 kPa~106 kPa Power Supply & Dimensions & Weight Power Supply: 200 V~240 V, 50/60 Hz, 2350 W Rated Power: 1000 VA (with external electrical box); 1600 VA (without externa electrical box) Dimensions (W×H×D): 1410 mm × 799 mm (without door handle) ×970 mm (without HEPA module) Weight: Approximately 232 kg (511 lb, without carriers)
