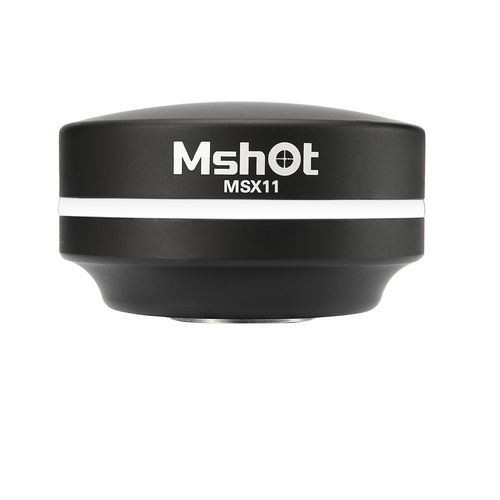

Microscope camera MSX11

digital3840 x 2160sCMOS

MSX11 is MSHOT latest highest resolution digital microscope camera, it takes use of high performance ISP imaging sensor, optimize for microscope imaging applications. The camera accurately reproduce color and object fine details. Through hardware improving speed, it works smooth and faster even under super high resolution, good to fluorescence imaging, pathology diagnose, metallurgical analysis, stereo observation and other microscope observation. Large sensor with ISP processor Hardware takes use of ISP processer promotes sensor property, based on sensor of 4/3 inch and 3.3μm*3.3μm pixel, the camera brings excellent color reproduction, sharp details, high sensitivity to light and high effiency into play. The large scale of sensor increases optical system field of view wider than 22mm. Super high resolution & Frame rate Full resolution of 21.0 megapixels and run with 21FPS image processing speed, maximum increaseing frame rate to 97FPS by optional decreased resolution mode, it achieves real high clarity and real smooth working. Area of application Scientific research microscopy imaging purpose of life science, pathlogy, medicine, metrology, polarization, dark field, phase contrast and other research experiments. Exposure time - 23us ～ 26s Effective gain - 1～16X Spectral response - 380nm ～ 650nm Working mode - Progressive / continuous Trigger - Software Exposure - Electronic rolling A / D convert - 12Bit Exposure function - Manual / Auto / Zone White balance - Auto / One push / Zone Image format - TIF, BMP, JPG, RAW Image cache - 128MB Software port - DirectShow / TWAIN
