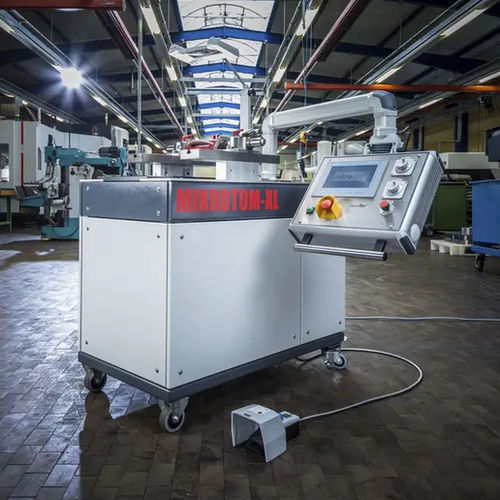

Our Large-Sledge-Microtomes are high-performance sliding microtomes for biomedical and industrial applications. The microtomes are fully automated and feature a control panel with electronic hand wheels and a touch screen allowing settings to be applied quickly and simply. High stability is guaranteed through their solid structure, while heavy-duty rollers enable easy handling. By means of precise knife feed and sample alignment as well as a freely adjustable clearance and declination angle, they enable high-precision sectioning for any application. The construction is designed to be user-friendly and low-maintenance.
SECTIONS / KNIVES / FEED
Section thickness ranging from 1 to 1,000 μm, adjustable in 1 μm intervals
Sectioning speed ranging from 1 to 125 mm/s, continuously adjustable
Vertical knife stroke distance: 70 mm
Knife retraction: freely adjustable from 100 – 2000 µm
Knife clearance angle adjustment freely configurable from 0° to -25°
Knife declination freely configurable in both ways from 90° to 135°
Freely configurable collision protection level
Trimming function for fast trimming of samples with free configurable trim values
Individual sectioning window with freely programmable front and rear starting and finishing points
Manual knife movement via touchscreen or electronic handwheel
Possible direct knife clamping without knife holder
DIMENSION / WEIGHT
Dimension Mikrotom-XL: 1175 x 650 x 950 mm
Dimension control panel: 400 x 470 x 150 mm plus telescopic arm
Working height (without clamping device): 950 mm
Required installation space: 1,600 x 1,400 mm
Total weight: 550 kg
