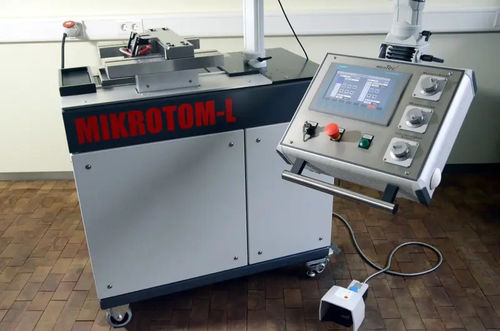

Sliding microtome L

automatedfor histologyprogrammable

The large-slide microtomes are high-performance microtomes for biomedical and industrial applications. The microtomes are fully automated and feature control panels with electronic handwheels as well as a touchscreen for quick and easy adjustments. The solid construction ensures high stability, yet the equipment can be moved effortlessly via the heavy-duty casters provided. Due to the precise blade alignment and specimen orientation, as well as a freely selectable blade and declination angle, the microtomes deliver highly precise sections for all conceivable applications. The entire design is user-friendly and extremely low-maintenance. KEY FEATURES • Outer dimensions frame: 990 x 550 x 950 mm • Control panel dimensions: 400 x 470 x 150 mm plus telescopic arm • Working height (without specimen mounting): 950 mm • Recommended footprint: 1,400 x 1,300 mm • Total weight: 420 kg FEATURES • Cut thickness adjustable from 1 to 1,000 µm in 1-µm increments • Cutting speed continuously adjustable from 1 to 125 mm/s • Total vertical stroke of the blade: 70 mm • Knife retraction: freely selectable from 100 to 2,000 µm • Knife clearance angle freely adjustable from 0° to -25 • Blade declination freely adjustable from 90° to 135° on both sides • Trim function for fast specimen cutting, with freely selectable trim values • Freely selectable collision protection level • Individual cutting window with freely programmable front and rear start or end points • Manual movement of the knife via touchscreen or electronic handwheel • Direct knife clamping possible without knife holder
