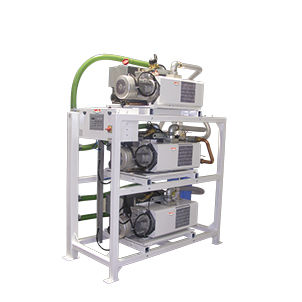

Medical vacuum system HOSPIVAC 2/3/V3/V4/V5/V6
rotary vanelubricated

medical vacuum system
medical vacuum system
medical vacuum system
Add to favorites
Compare this product


rotary vane

Min.: 28 m³/h
(988.81 ft³/h)

Max.: 360 m³/h
(12,713.28 ft³/h)


Min.: 0.75 kW
(1.02 hp)

Max.: 6.6 kW
(8.97 hp)


Min.: 185 kg
(407.9 lb)

Max.: 1,660 kg
(3,659.7 lb)


The vacuum is a strategic fluid in the healthcare field because vacuum cylinders don’t exist. This is the reason why our systems are designed to ensure the security of patients and meets to the requirements of the European directive 93/42. They are available in duplex, triplex or quadruplex version. HOSPIVAC 2/3/V3/V4/V5/V6 autonomous and compact vacuum systems joined the last generation of high performance lubricated rotary vane vacuum pumps. Their pumping speed allow them a big energy efficiency. They can be equipped up to six vacuum pumps. Several models of regulation PLC allow remote monitoring. The management of alarms is available for these systems in on/off or in FLEXO constant vacuum regulation. They are equipped for a link to a secondary tank when the control is configured in on/off. According to the number of pumps, the bacterial filtration is in parallel duplex. These systems fit to the ISO 7396-1 standard version 2016.
