Medical vacuum system HOSPIVAC G
rotary vanerotary clawlubricated

medical vacuum system
medical vacuum system
medical vacuum system
Add to favorites
Compare this product


Characteristics

Applications
medical
Technology
rotary vane, rotary claw
Other characteristics
lubricated, oil-free, modular
Flow

Min.: 28 m³/h (988.81 ft³/h)

Max.: 769 m³/h (27,156.98 ft³/h)

Power

Min.: 0.75 kW (1.02 hp)

Max.: 15.6 kW (21.21 hp)

Description

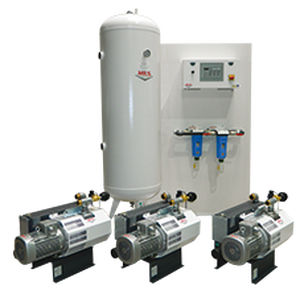

HOSPIVAC G vacuum systems can be equipped up to six lubricated rotary vane pumps. They are designed to increase the modularity in technical rooms. Several models of regulation PLC allow remote monitoring. The management of alarms is available for these systems in on/off or in FLEXO constant vacuum regulation. They are equipped to link a main and a secondary tank when the control is configured in on/off. According to the number of pumps, the bacterial filtration is in parallel duplex. These systems fit to the ISO 7396-1 standard version 2016. Vacuum systems The vacuum is a strategic fluid in the healthcare field because vacuum cylinders don’t exist. This is the reason why our systems are designed to ensure the security of patients and meets to the requirements of the European directive 93/42. They are available in duplex, triplex or quadruplex version.
