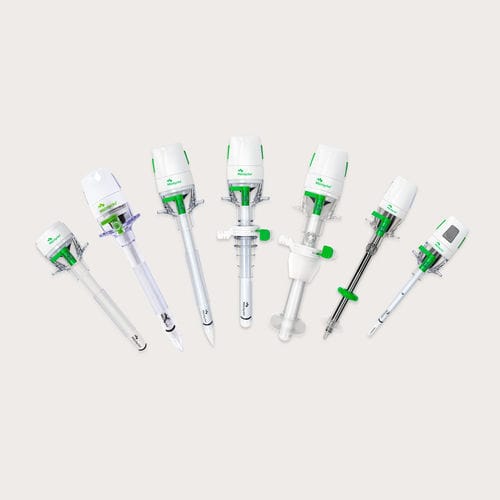

Laparoscopic trocar

rounded tip

Overview
The bladeless dilating trocar is a sterile, single-use instrument composed of an obturator and a transparent cannula. The obturator features a bladeless dilating tip that separates tissue layers atraumatically during insertion. The trocar cannula incorporates dual sealing systems to minimize gas leakage during instrument passage and a Luer stopcock to connect insufflation/desufflation.

Product function
The bladeless dilating trocar is intended to establish an access port for endoscopic instruments during minimally invasive surgical procedures. Its secondary function is to maintain pneumoperitoneum in the abdominal cavity.

Main features (extract)

• Sterile
• Single-use
• Designed for abdominal access / laparoscopic procedures
• Transparent, ribbed cannula for instrument visualization and abdominal wall retention
• Obturator with bladeless dilating tip
• Dual sealing systems to minimize gas leakage
• Luer stopcock for insufflation/desufflation

References / Variants

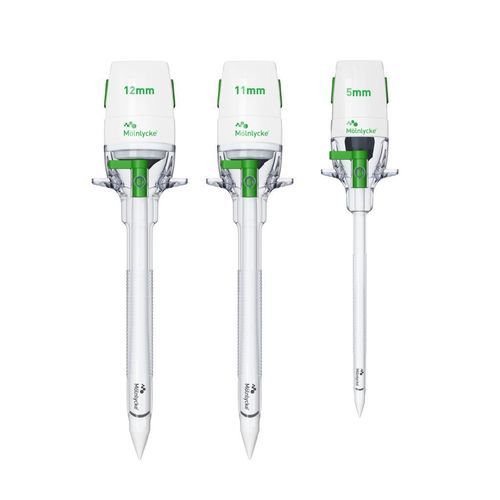

• 899308 - 5x70mm, Bladeless dilating trocar (5 pcs)
• 899309 - 5x100mm, Bladeless dilating trocar (5 pcs)
• 899310 - 11x100mm, Bladeless dilating trocar (5 pcs)
• 899311 - 11x150mm, Bladeless dilating trocar (5 pcs)
• 899312 - 12x100mm, Bladeless dilating trocar (5 pcs)
• 899313 - 12x150mm, Bladeless dilating trocar (5 pcs)
• 899336 - 15x100mm, Bladeless dilating trocar (5 pcs)

Ordering information (extract for Ref.: 899308-02)
Packaging level | Quantity | GTIN
Consumer pack | 1 | 7323190273164
Dispenser box | 5 | 7323190215898
Transport carton | 60 | 7323190215881

Regulation & references
Class: MDD Class IIa
Notified body: BSi 2797
Instructions for Use (IFU) available for this product.

Technical characteristics / specifications

• Type: Bladeless dilating trocar
• Intended use: sterile, single-use device for minimally invasive endoscopic abdominal access
• Primary function: create an access port for endoscopic instruments
• Secondary function: maintain pneumoperitoneum
• Construction: obturator + transparent ribbed cannula
• Sealing: dual sealing systems to minimize gas leakage
• Connection: Luer stopcock for insufflation/desufflation
• Available sizes: 5x70mm; 5x100mm; 11x100mm; 11x150mm; 12x100mm; 12x150mm; 15x100mm
