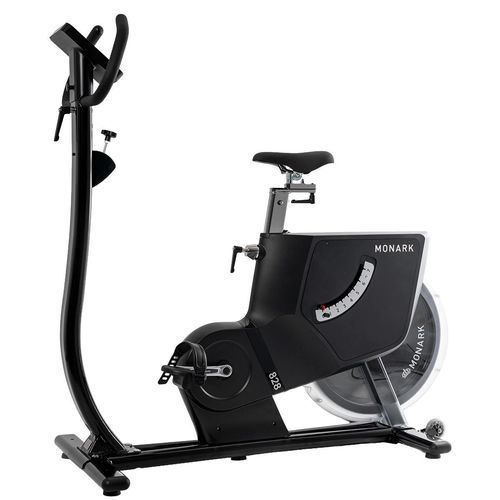

Ergometer exercise bike 828 Upright

Overview
The Monark 828 is a professional upright ergometer designed for aerobic testing, education, rehabilitation and work testing. It is built around Monark’s Manual Pendulum System (MPS) which provides a clear and verifiable workload that is adjusted directly on the ergometer and can be mechanically checked over time. The 828 features a stable upright frame with low step-through access and the Monark Novo Duo display for modern usability and reliable measurement.

Key features

• Manual Pendulum System (MPS) for verifiable, fixed resistance in kp regardless of cadence
• Monark Novo Duo monochrome touchscreen display showing RPM, time, speed, distance, watt/kp and heart rate (via ANT+ chest belt)
• Low step-through upright frame for easy access and stable use
• Mechanical and electronic calibration options (4 kg calibrated weight + electronic calibration via Novo Duo)
• Wireless data transfer via BLE (FTMS) and ANT+ (FE-C); real-time data transfer to compatible systems
• Powered by an external power bank; USB-C used for charging and power

Frame and mechanical components
Upright Monark frame with adjustable Monark upright handlebar and adjustable Monark upright seatpost. Wide soft saddle. Bottom bracket 68/122 mm. Steel crank, 170 mm. Pedals 9/16” with foot straps. Covers in high-quality recycled plastic. Flywheel mass 20 kg.

Display & calibration
The Novo Duo display provides real-time readings of RPM, time, speed, distance, watt/kp and heart rate (when using an ANT+ chest belt). Calibration can be performed electronically via the Novo Duo or mechanically using a 4 kg calibrated weight.

Connectivity
Wireless: BLE (FTMS) and ANT+ (FE-C). External control: not supported (resistance is adjusted manually on the ergometer). Data transfer: real-time data can be shared with compatible apps, systems and test platforms (power, cadence, speed, heart rate).

Use

• Education: teaching physiology, test methodology and the relationship between workload, cadence and power output
• Occupational health and work testing: repeatable submaximal and maximal tests
• Rehabilitation and medical assessment: controlled workload for evaluating aerobic capacity
• Research and sports science: environments requiring mechanical precision and verifiable workload
• Testing and warm-up: daily professional use with stable construction and easy access

Caractéristiques / spécifications techniques

• Model: 828 Upright
• System: MPS – Manual Pendulum System
• Flywheel: 20 kg
• Workload principle: Constant Force (fixed resistance in kp regardless of cadence)
• Calibration: Electronic via Novo Duo and mechanical with 4 kg calibrated weight
• Display: Monark Novo Duo, monochrome touchscreen (RPM, time, speed, distance, watt / kp, heart rate via ANT+)
• Wireless: BLE (FTMS), ANT+ (FE-C)
• External control: No (resistance adjusted manually)
• Data transfer: Real-time data to compatible systems (power, cadence, speed, heart rate)
• Frame type: Monark upright frame
• Handlebar: Adjustable Monark upright handlebar
• Seatpost: Adjustable Monark upright seatpost
• Saddle: Wide soft saddle
• Bottom bracket (BB): 68/122 mm
• Crank: Steel, 170 mm
• Pedals: 9/16”, pedals with foot straps
• Covers: High-quality recycled plastic
• Max user weight: 180 kg
• Recommended user height: Above 150 cm
• Length: 1240 mm
• Width: 520 mm
• Height: 1100 mm
• Weight (product): 55 kg
• Power requirements: Powered by power bank; USB-C used for charging and power supply
