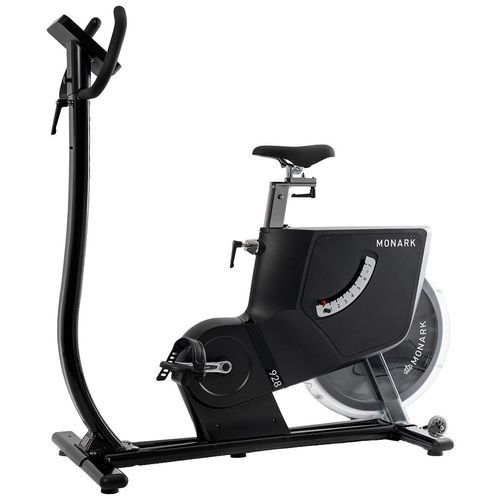

Ergometer exercise bike 928 Upright

Overview The Monark 928 Upright is an advanced medical ergometer designed for submaximal and maximal testing in clinical and professional environments. It integrates Monark’s Electronic Pendulum System (EPS) to deliver electronically controlled workloads with both electronic and mechanical calibration for high precision and repeatability. The low step-through frame and adjustable components support safe positioning for patients and test subjects.

Key features The EPS supports Constant Power (fixed watts irrespective of cadence) and Constant Force (fixed resistance in kp irrespective of cadence). The Monark Novo Duo display provides RPM, time, speed, distance, watt, kp and heart rate (ANT+). Low step-through access, a stable upright frame and modern wired/wireless connectivity make the unit suitable for clinical, occupational health, rehabilitation and research settings.

Use

• Occupational health: work testing and functional capacity evaluations
• Medical rehabilitation: controlled aerobic reconditioning after illness or injury
• Clinical testing: submaximal and maximal VO₂ protocols
• Research and education: structured testing in labs, universities and clinical settings
• Fitness assessment: established protocols such as Åstrand, YMCA and Ekblom–Bak
• Advanced test environments: where stable workload, clear readout and connectivity to external systems are required

Included/Notable components and materials Upright frame with adjustable Monark handlebar and seatpost; wide soft saddle; steel 170 mm crank; 9/16” pedals with foot straps; covers in high-quality recycled plastic.

Technical specifications

• Frame: Monark upright frame; adjustable Monark upright handlebar; adjustable Monark upright seatpost; wide soft saddle; BB 68/122 mm; crank steel 170 mm; pedals 9/16” with foot straps; covers in high-quality recycled plastic
• Resistance system: EPS – Electronic Pendulum System; electronic calibration via Novo Duo and mechanical calibration with 4 kg calibrated weight; flywheel 20 kg; supports Constant Power and Constant Force modes
• Display: Monark Novo Duo monochrome touchscreen; displays RPM, time, speed, distance, watt/kp and heart rate (via ANT+ chest belt)
• Connectivity: Wired USB-B (max 3 m); Wireless BLE (FTMS) and ANT+ (FE-C); adapted for use with external platforms and modern test environments
• Weight & dimensions: Max user weight 180 kg; recommended user height above 150 cm; length 1240 mm; width 520 mm; height 1100 mm; unit weight 64 kg
• Power requirements: 220V via adapter; 12V, 5.0A
